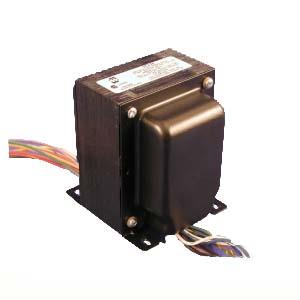

Hammond Manufacturing 372HX High Voltage, Plate & Filament Transformer, high voltage & filament, 191VA, 600V C.T. @ 230ma., 300 Series

Width: 95.25 mm

Height: 115.82 mm

Length: 101.6 mm

Unit Weight: 3.266 kg

Power Rating: 191 VA

Mounting Style: Chassis

Primary Winding: Dual Primary Winding

Secondary Winding: Triple Secondary Winding

Termination Style: Wire Leads

Operating Frequency: 50 Hz, 60 Hz

Primary Voltage Rating: 100 VAC to 240 VAC

Secondary Current Rating: 230 mA

Secondary Voltage Rating: 600 VAC CT

Operating Temperature Range: 0 C to + 105 C

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: 0 C
