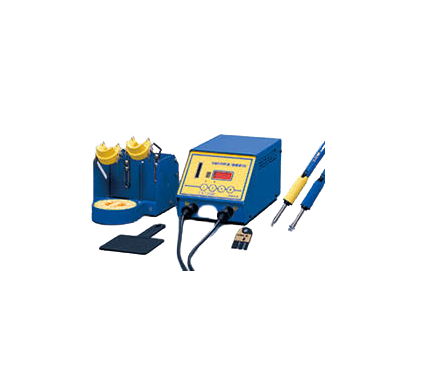

HAKKO FX-952 W/3 Wired Cord But No Plug Soldering Station (230V, 140W)

Power consumption: 140W

Temperature range: 200 to 450ºC

Temperature stability: ±5ºC at idle temperature

・Station

Output voltage: AC 24V

Dimensions: 113(W)×106(H)×206(D)mm

Weight: 2.6kg

・Soldering Iron

Power consumption: 70W (24V)

Tip to ground resistance: <2Ω

Tip to ground potential: <2mV

Heating element: Composite heater

Cord length: 1.2m

Total length: 188mm (with 2.4D tip)

Weight: 30g (with 2.4D tip)

Packing list:

Station(HAKKO FX-952)(1),

Soldering iron(HAKKO FM-2028)(2),

Control card(1), Power cord(1), Heat resistant pad(1),

Iron holder(1), Connecting cable(2), Instruction manual(1)

Datasheet
