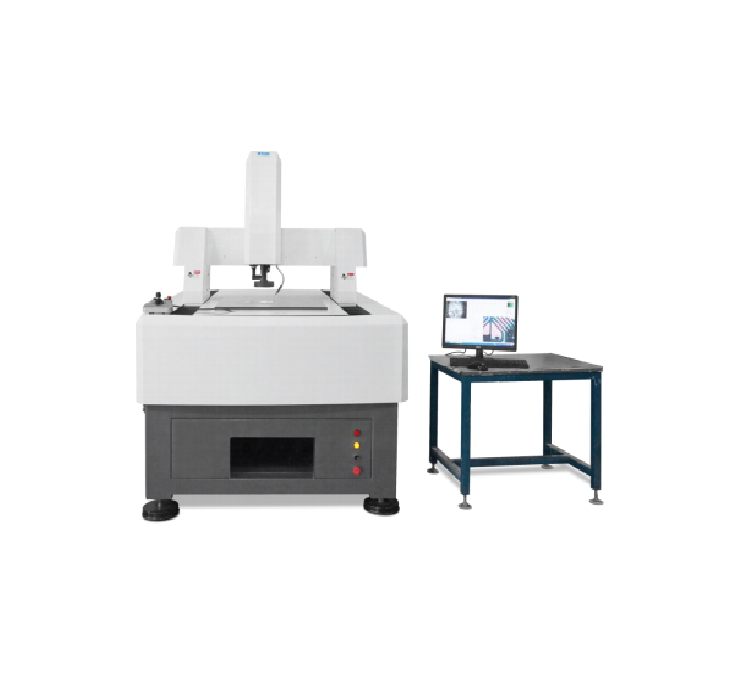

HAIDA HUD-U12080CNC Large/Longmen Automatic Video Measuring Machine (1200x800x200mm)

Measuring (mm): 1200x800x200

Dimension (mm): 1700x2200x1500

Instrument weight (kg): 2500

Accuracy: X,Y： (3+L/200) μm

Z： (5+L/200) μm

Repeat-ability: 2 μm

Grating ruler resolution: 0.001mm

CCD: High-resolution color CCD

Zoom lens: 0.75～4.5X high-definition manual zoom lens

Image magnification: 34～220X

Working distance: 92mm

Measuring software: HUD-CNC

Upper light source: Adjustable 6 ring 8 area surface ring LED cold light source

Under light source: Parallel light LED cold light source

Motor: Panasonic 200W servo motor

Guide rails: High precision linear guide made in Taiwan

Mode of operation: Program control or joystick

Operating Voltage: 220V (AC) 50Hz
