The main technical parameters are as follows:
Capacity (Optional): 10, 20, 50, 100, 200 kg
Resolution: 1/100,000
Precision: < 0.5%
Operation Mode: Computer
Display Mode: LCD
Platen: 100×100 mm or depending on the diameter of the flat crush sample
Compressed Space: 500 mm
Platen Parallelism: ± 0.05 mm
Ring Crush Sample: 152×12.7 mm
Edge Crush Sample: 25×100 mm
Test Speed: 12.7 mm/min
Dimension (L×W×H): 790×510×1060 mm
Weight: Approx. 51 kg
Power: AC220V, 1.5A
Specifications
1.Computer Servo
2.Multi-function
3.Paper and Packaging Ring
4.OEM.
Usage

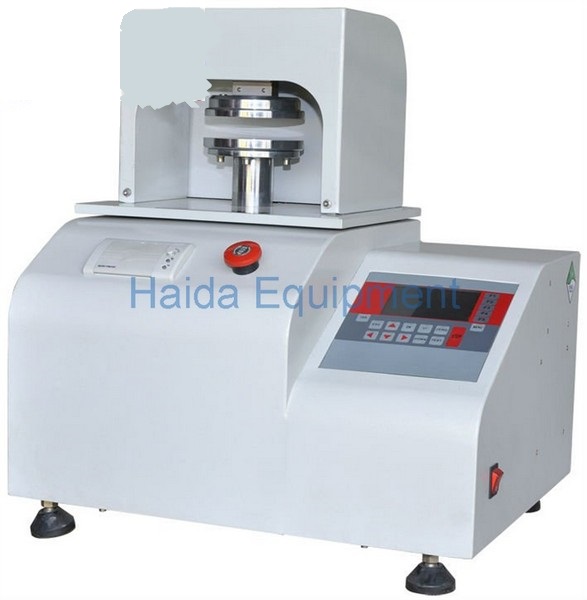

Corrugated Paper Edge Crush Tester ,Computer servo multi-function carton tension and compression strength tester can do a full range of testing, which includes Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhensive Strength Testing and other general compression tests, to a variety of materials like paper, packaging materials, etc. It is a multi-functional testing equipment.
