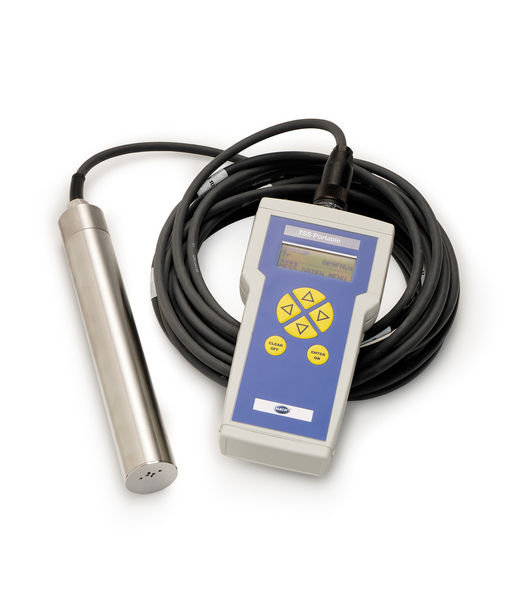

HACH LXV322.99.00002 TSS Portable Hand-held Turbidity, Suspended Solids, and Sludge Level System

Display:

Alphanumerical display, 4 rows of 16 characters

Material:

Sensor Body: stainless steel;

Probe: stainless steel;

Sensor Window: sapphire

Measurement Modes:

Continuous measurement, integration time settings 0 - 1000 seconds

Measuring Principle:

Combined multiple beam alternating light method with infrared diode system and beam focusing.;

Turbidity: 2-channel 90° scattered light measurement in accordance with DIN/EN 27027/ISO 7027;

additional measurement value verification through six-channel multiple-angle measurement;

Solids: Modified absorption measurement; six-channel multiple-angle measurement;

Memory: Up to 290 measuring points

Operating Pressure: 0 to 10 bar (0 to 145 psi)

Operating Temperature Range: 0 - 60 °C

Power:

Automatic shut down after 4 minutes (if no button has been pressed and no permanent measurement is activated)

Precision Suspended Solids:

< 4 % ± 0.001 g/L , whichever is greater

Precision Turbidity:

< 3 % or ± 0.02 NTU , whichever is greater

Pressure Range: Max. 10 bar

Protection Class: Probe IP68; Control unit IP 55

Range: TSS 0.001 - 400g/L

Turbidity: 0.001 - 9999 FNU

Relative Humidity: 0 - 95 %

Resolution:

Suspended Solids: 0.01 at 1 - 9.999 g/L

Suspended Solids: 0.1 at 10 - 99.9 g/L

Suspended Solids: 1 at greater than 100 g/L

Resolution turbidity:

0.001 @ 0 - 0.999 NTU

0.01 @ 1 - 9.99 NTU

0.1 @ 10 - 99.9 NTU

1 at greater than 100 NTU

Sensor Cable: Cable Length 10 m (32.8 ft.) cable with marks for distance, Current Input 60 mA

Dimensions:

Case L: 450 mm (17.7 in)

Meter (H X W X D): 110 x 230 x 40 mm (4.33 x 9.06 x 1.57 in.)

Probe (Ø X L) 40 mm x 29 cm (1.57 x 11.42 in.)

Weight:

Probe: 3.5 lbs (1.6 kg)

Meter: 1.2 lbs (0.54 kg)

Included : Turbidity, Suspended Solids and Sludge Level probe, meter, rechargeable batteries, charger (not available in US and Canada), user manual, carrying case
