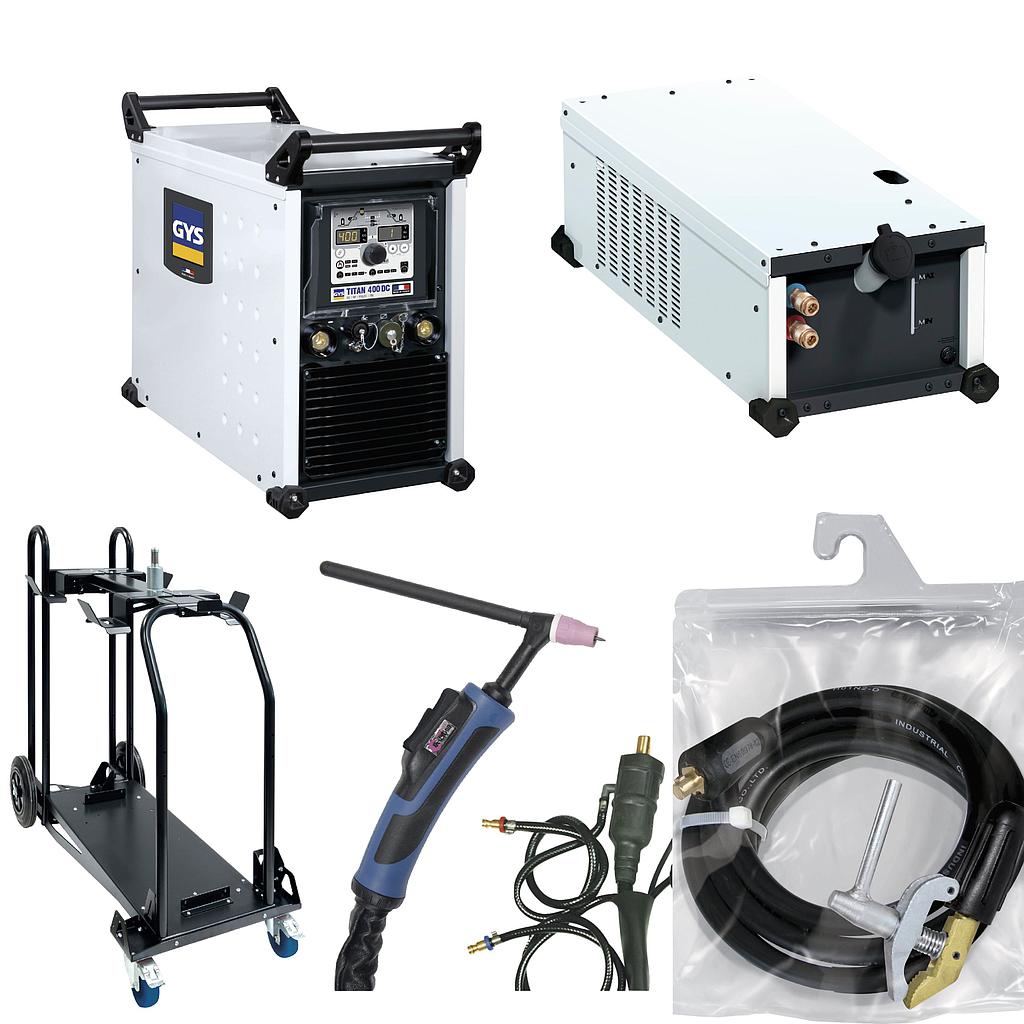

STANDARD DELIVERY:
1. TITAN 400 DC
The perfect solution for accurate welding of high alloy metals, the TITAN 400 power source with its high duty cycle (400 A @ 60 %) is designed for the most demanding TIG and MMA welding applications. Its User friendly interface enables easy setup with large and simple controls. Equipped with TACK mode and spot function, the TITAN 400 is the preferred tool of the professional welder on pipework, tubular construction and stainless steel plate fabrications.
OPTIMISED DC WELDING:
Versatile thanks to its 6 modes:
- TIG DC : welding in continuous current.
- TIG DC Pulse : reduces heat distortion of the workpiece.
- 3 special welding processes:
- SPOT mode: traditional spot welding before welding thin sheet metals.
- TACK mode: very precise spot welding function free of oxidation reducing the risk of heat input causing deformation. The welding spots in TACK mode are invisible in the weld bead.
- E-TIG mode: ensures a unified weld bead width and consistant penetration regardless the position of the torch in relation to the work piece (control of the welding energy).
- 2 types of Arc start-up: HF (without contact) or LIFT (with contact) for electro-sensitive
environments.
- 3 trigger modes: 2T, 4T and 4T LOG.
- Automatic detection of the torch: compatible with trigger, double button and potentiometer torches.
MMA WELDING:
- MMA: coated, rutile, basics and cellulosic electrodes (up to Ø 6 mm).
- MMA Pulse: Developed for vertical welding to reduce «sagging» and optimise penetration
Specifications:
Power supply: 400 V, 3 ph, 50/60 Hz
Fuse: 32A
Normal current output (MMA): 5-400 A
Normal current output (TIG): 3-400 A
Maximum welding current: 400 A
No-load voltage: 85 V
Duty cycle (environment temperature at 40°C):
- MMA
400 A/36 V @ 60%
360 A/34.4 V @ 100%
- TIG
400 A/26 V @ 60%
360 A/24.4 V @ 100%
Dimensions (L x w x h): 75x30x54 cm
Weight: 40kg
Protection class: IP23
Standard: IEC 60974-1/3/10 A
2. Cooling unit WCU 1kW C- 013537
3. Torch ABITIG-450W-8m: Double button: 037366
4. Trolley 10m3: 037328
5. Earth clamp with cable 600 A 4 m / 70 mm²- 043831
