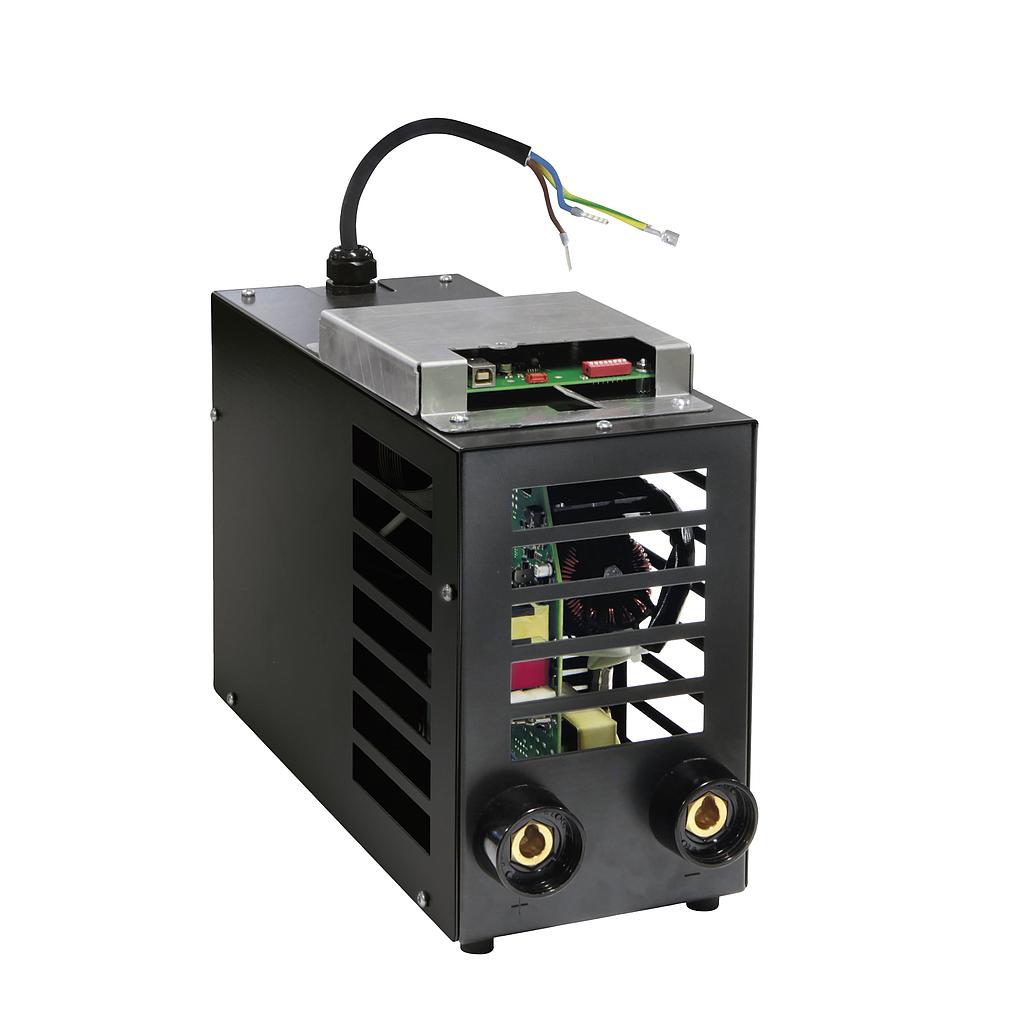

GYS ORBITIG 200A TIG Welding Machine (1ph; 230V; 5-220A; no accessories)

Designed for automated welding operations, the ORBITIG 200A is a welding machine operated by a CAN Bus. With inverter technology it benefits from the latest technical improvements in TIG welding. Compact, it will perfectly fit on robots, including on orbtital TIG welding machines.

FEATURES:

- Flexible Voltage power supply: This 220A machine will work on a single phase power supply from 85 to 265 V.

- PFC technology (Power Factor Correction): The electrical power supply usage is optimised for up to 30% energy savings.

- CAN OPEN communication protocol: Compliant with the CiA (CAN In Automation) requirements, this system offers a fast and reliable communication solution.

- TRACKING mode

The welding machine receives and updates the current setpoint in realtime.

- Highly precise and instantaneous data exchange

• Welding status (ARC ON / ARC OFF).

• Measure voltage and current (for energy control and arc length).

• Protection mode in case of overvoltage, undervoltage, short circuit or arc stop.

• Thermal protection information.

- «HEIGHT CALIBRATION» mode

During the mass production of pipes, it is important to make sure that there is a constant height between the electrode and the pipe before starting the weld. To do so the welding machine features a vertical repositioning function which puts the electrode at a set height after contact.

- 2 types of strike

• HF without contact

• LIFT with contact for electro-sensitive environments

Specifications:

Power supply: 230V, 1ph, 50/60 Hz

Fuse: 16A

Normal current output (TIG): 5-220 A (230 V)

Maximum welding current: 220 A

No-load voltage: 76 V

Duty cycle (environment temperature at 40°C):

- 230 V / 16 A :

220 A @ 35%

165 A @ 60%

140 A @ 100%

Dimensions (L x w x h): 39x16x28 cm

Weight: 9 kg

Standard: IEC 60974-1/3/10 A

Choose optional accessories when ordering
