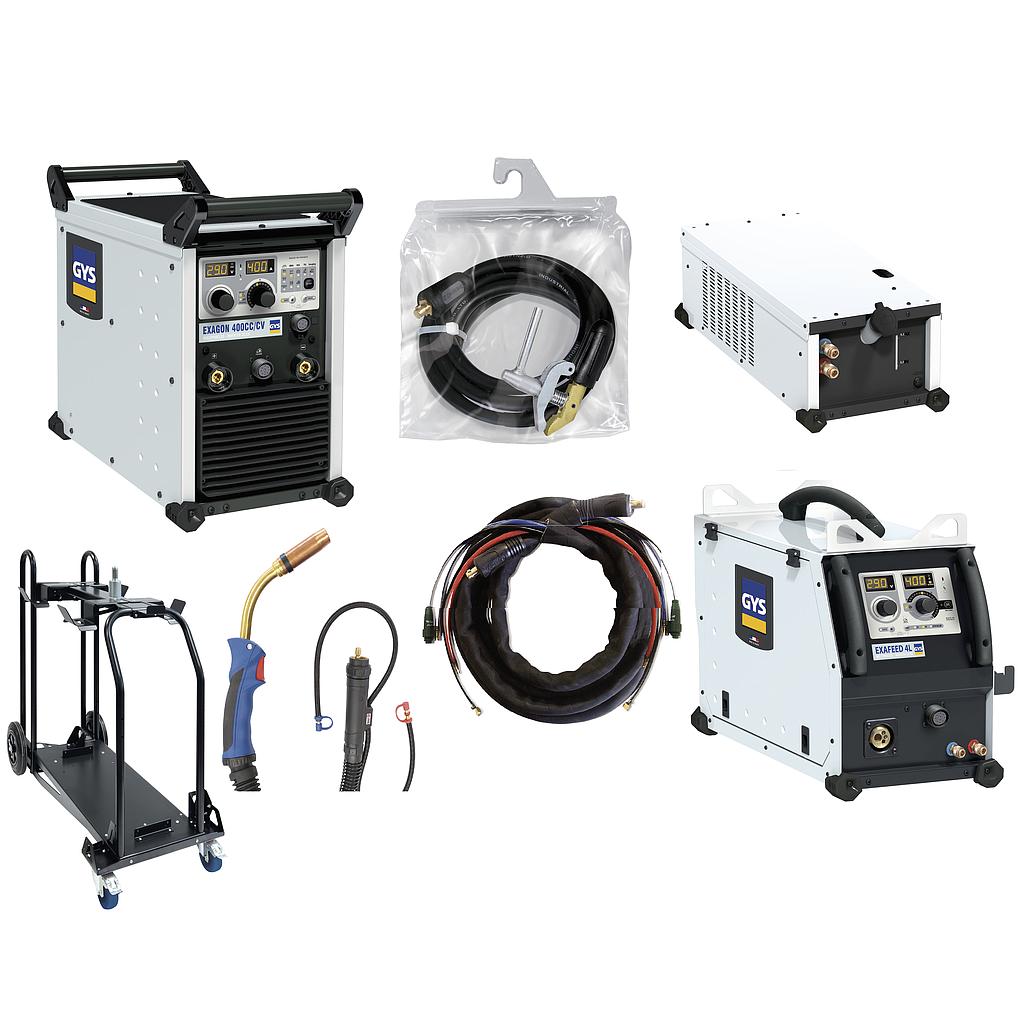

STANDARD DELIVERY:
1. EXAGON 400 CC/CV
Powered by inverter technology, the EXAGON 400 combines MMA, MIG-MAG & TIG in a single machine, offering exceptional welding performance. Featuring advanced electronics and a reinforced structure, this station guarantees maximum productivity, even in the most hostile environments. Powerful, sturdy and versatile, the EXAGON 400 takes welding to the next level.
MULTIPROCESS WELDING:
Versatile thanks to its 6 modes:
• MMA : basic, rutile and cellulosic electrodes (up to Ø 6 mm)
• MMA Pulse : ideal for rising vertical welding
• MIG / MAG : solid wire (Ø 0.6/1.6 mm) and cored wire (Ø 2.4 mm)
- Workshop water cooled wire feeder (optional EXAFEED 4L)
- Construction site wire feeder (optional NOMADFEED)
• Arc gouging with carbon electrode (up to Ø 6.4 mm),
• TIG DC with TIG lift start
Specifications:
Power supply: 400 V, 3 ph, 50/60 Hz
Fuse: 32A
Rate current output (MMA): 20-400 A
Rate current output (TIG): 10-400 A
Rate current output (MIG/MAG): 15-400 A
Maximum welding current: 400 A
No-load voltage: 84 V (< 35V VRD activated)
Duty cycle (environment temperature at 40°C):
- MMA
400 A/36 V @ 60%
350 A/34 V @ 100%
- TIG
400 A/26 V @ 60%
350 A/31.5 V @ 100%
- MIG/MAG
400 A/34 V @ 60%
350 A/24 V @ 100%
Dimensions (L x w x h): 58x52x30 cm
Weight: 32kg
Protection class: IP23
Standard: IEC 60974-1/10 A
2. Separate wire feeder EXAFEED-4L-032408
3. EXACOOL Cooling Unit 032422
4. MIG INVERTER connection cable 10 m, liquid, ø95 mm²- 047631
5. TYPE C, Ø1/1.2
6. Earth cable 4m, 70 mm²- 043831
7. Trolley- 037328
8. MIG/MAG torch grip 350 A, 4 m- 040946
