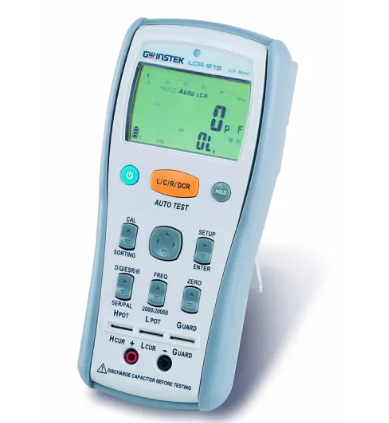

GW INSTEK LCR-915 Hand-held LCR Meter (10Khz)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
LCR-916 | LCR-915 | LCR-914 | |
TEST FREQUENCY | |||
100Hz/120Hz/1k/10k/100kHz selectable | 100Hz/120Hz/1k/10kHz Selectable | 100Hz/120Hz/1kHz Selectable | |
FULL SCALE | |||
Main Display | 20,000/2,000 counts selectable | ||
Sub Display | 2,000 counts | ||
INDUCTANCE | |||
Range | 20uH ~ 20kH depends on the selected test frequency | ||
Best Accuracy | +(0.2% rdg + 2 digits) | ||
Resolution | 0.001uH ~ 0.001kH depends on selected range | ||
CAPACITANCE | |||
Range | 20pF ~ 20mF depends on the selected test frequency | ||
Best Accuracy | +(0.2% rdg + 2 digits) | ||
Resolution | 0.001pF ~ 0.001mF depends on selected range | ||
RESISTANCE | |||
Range | 20Ω ~ 200MΩ depends on the selected test frequency | ||
Best Accuracy | +(0.2% rdg+ 2 digits) | ||
Resolution | 0.001Ω ~ 0.01MΩ depends on selected range | ||
DC RESISTANCE | |||
Range | 200Ω ~ 200MΩ | ||
Best Accuracy | +(0.2% rdg+ 2 digits) | ||
Resolution | 0.01Ω ~ 0.01MΩ depends on selected range | ||
QUALITY FACTOR (Q) | |||
Range | 0.000 ~ 999 | ||
Accuracy | 2 x (main parameter accuracy) | ||
Best Resolution | 0.001 | ||
DISSIPATION FACTOR (D) | |||
Range | 0.000 ~ 999 | ||
Accuracy | 2 x (main parameter accuracy) | ||
Best Resolution | 0.001 | ||
PHASE ANGLE (θ) | |||
Range | -90° ~ 90° | ||
Accuracy | +(0.2% rdg+ 5 digits) | ||
Resolution | 0.1° | ||
MEASUREMENT CIRCUIT | |||
Parallel or Series selectable | |||
AUTO LCR MODE | |||
Automatically identifies and measures the DUT when the meter is switch on | |||
SORTING MODE | |||
+0.1%, +0.2%, +0.25%, +0.5%, +1.0%, +2.0%, +5.0%, +10.0%, +20.0%, +80%/-20% Selectable | |||
OTHER FUNCTIONS | |||
Auto range, Auto backlit, Max, Min, Data hold, Zero, Auto power off, 46 segments analogue bar | |||
DISPLAY | |||
LCD mono display | |||
INTERFACE | |||
USB | |||
POWER SOURCE | |||
AA Battery 1.5V x 4 or DC 5V(through AC adapter or USB cable) | |||
DIMENSIONS & WEIGHT | |||
95(W) × 207(H) × 52(D) mm, Approx. 630g | |||
