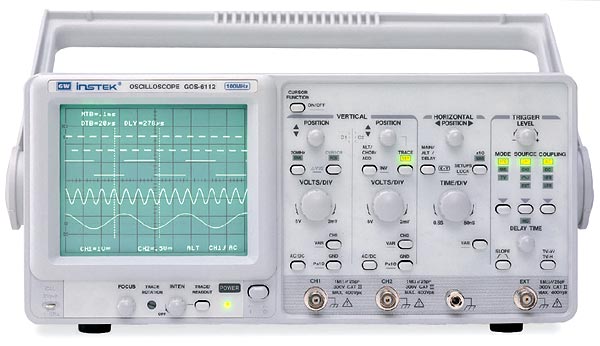

GWInstek GOS-6112 Analog Oscilloscope ( 100Mhz, 2CH)

Name: GWInstek GOS-6112 Analog Oscilloscope ( 100Mhz, 2CH)
Brand: GW INSTEK

ManufacturerGW INSTEK(View more products from this manufacturer)

ModelGOS-6112

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

The screen display with 8x10 6 inch squares
Sensitivity: 2mV ~ 5V / DIV ± 3%,
Bandwidth: 100MHz
Input: AC, DC, GND, Max 400V
Mode: CH1, CH2, DUAL, ADD, CH2 INV
Power supply: AC 100V / 120V/220V / 230V ± 10%, 50 / 60Hz
Manufacturer: GwInstek - Taiwan

CRT

Type

6-inch rectangular type with internal graticule;
0%, 10%, 90% and 100% markers.
8 x 10 div (1 div = 1 cm)

Accelerating Potential

16kV approx. (GOS-6103/GOS-6103C), 12 kV approx.(GOS-6112)

Illumination

Continuously adjustable (GOS-6103/GOS-6103C)

Z-axis input

Coupling : DC
Sensitivity: 5V or more
Maximum input voltage : 30V (DC + AC peak) at 1kHz or less
Bandwidth : DC ~ 5 MHz

VERTICAL SYSTEM

Sensitivity

2mV~5V/div, 11 step in 1-2-5 sequence

Sensitivity Accuracy

≦3% (5div at the center of display)

Vernier Vertical Sensitivity

Continuously variable to 1/2.5 or less of panel-indicate value

Bandwidth(-3dB)

DC~100MHz (2mV/div:DC~20MHz)

Rise Time

3.5ns (2mV/div:17.5ns)

Signal Delay

Leading edge can be monitored

Max. Input Voltage

400V(DC+AC peak) at 1kHz or less

Input Coupling

AC, DC, GND

Input Impedance

1MΩ±2% // approx. 25pF

Vertical Mode

CH1,CH2,DUAL(CHOP/ALT), ADD, CH2 INV.

Bandwidth Limited

20MHz

Common-Mode Rejection Ratio

50:1 or better at 50kHz

Dynamic Range

8 div at 60MHz
5 div at 100MHz

HORIZONTAL SYSTEM

Horizontal Modes

MAIN(A), ALT, DELAY(B)

A(main) Sweep Time

50ns~0.5s/div, continuously variable (UNCAL)

B(delay) Sweep Time

50ns~50ms/div

Accuracy

±3% (±5% at x 10 MAG)

Sweep Magnification

x 10 (maximum sweep time 5nS/div)

Hold Off Time

Variable

Delay Time

1μs~5s

Delay Jitter

Better than 1:20000

Alternate Separation

Variable

TRIGGER

Trigger Modes

AUTO, NORM,TV

Trigger Source

CH1, CH2, LINE, EXT

Trigger Coupling

AC, DC, HFR, LFR

Trigger Slope

"+" or "-" polarity or TVsync polarity

Trigger Sensitivity

Mode	Frequency	INT	EXT
AUTO	10Hz~20MHz 20MHz~100MHz	0.35div 1.5div	50mV 150mV
NORM	DC~20MHz 20MHz~100MHz	0.35div 1.5div	50mV 150mV
TV	sync singnal	1div	200mVpp

TV sync

TV-V, TV-H

Max. External Input Voltage

400V (DC+AC peak) at 1kHz

External Input Impedance

1MΩ±5% // approx.25pF

X-Y OPERATION

Mode

X-axis: selectable CH1, CH2, EXT
Y-axis: selectable CH1, CH2, CH1 and CH2

Sensitivity Accuracy

2mV~5V/div±3% ; EXT : 0.1V/div±5%

X-axis Bandwidth

DC~500kHz(-3dB)

Phase Error

3° or less from DC~50kHz

OUTPUT SIGNAL

CH1 Signal Output

Voltage: approx. 25mV/div into 50Ω
Frequency response : DC ~ 10MHz

Calibrator Output

1kHz Square wave, 2Vpp±2%

CURSOR READOUT FUNCTION

Cursor Measurement Function

ΔV, ΔV%, ΔVdB, ΔT, 1/ ΔT, ΔT%, Δθ

Cursor Resolution

1/100 DIV

Effective Cursor Range

Vertical: ±3div ; Horizontal: ±4 div

Panel Setting Display

Vertical: V/div(CH1,CH2),UNCAL,ALT/CHOP/ADD,INV, probe factor,AC/DC/GND
Horizontal: s/div(MTB, DTB), UNCAL, x 10MAG, delay time , HO
Trigger: source, coupling, slope, level, TV-V, TV-H
Others: X-Y lock, save/recall MEM 0-9 (GOS-6103/GOS-6103C)

AUTO MEASUREMENT FUNCTION (GOS-6103C)

Parameter Function

FREQ, PERIOD, ±WIDTH, ±DUTY (+ or - polarity selected by trigger slope)

Display Digits

Max. 6-digits, decimal

Frequency Range

50Hz ~ 100MHz

Accuracy

1kHz ~ 100MHz : 0.01% ; 50Hz ~ 1kHz : 0.05%

Measuring Sensitivity

> 2 div (Measuring source selected from CH1 and CH2 as synchronous signal sources)

SPECIAL FUNCTION
