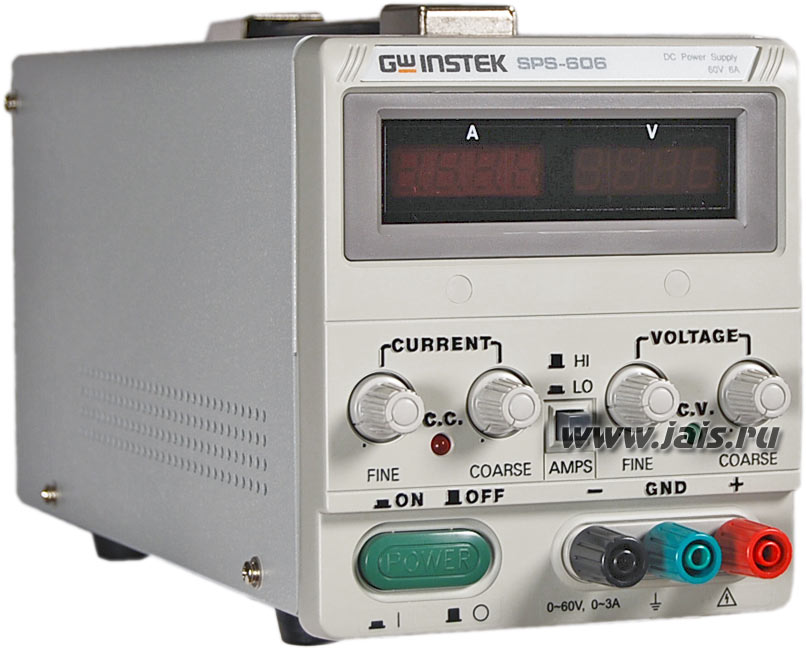

Model: SPS-606
Warranty: 12 months
Manufacturer: Gwinstek - Taiwan
Origin: Shanghai- China
Accessories: ; User Manual x 1; Power Cord x 1, Test Lead GTL-203*1
| OUTPUT | |||||
|
|
SPS-606
|
||||
|
Voltage
|
0~60V
|
||||
|
Current
|
0~6A
|
||||
| CONSTANT VOLTAGE OPERATION | |||||
| Line Regulation | < 5mV | ||||
| Load Regulation | < 5mV | ||||
| Ripple & Noise | < 5mVrms, 100mVp-p 20Hz ~ 20MHz | ||||
| Recovery Time | < 500μS ( 50% Load change, Minimum load 0.5A ) | ||||
| Temp. Coefficient | < 100 ppm/°C | ||||
| Output Range | 0 to rating voltage continuously adjustable | ||||
| CONSTANT CURRENT OPERATION | |||||
| Line Regulation | < 3mA | ||||
| Load Regulation | < 3mA | ||||
| Ripple Current | < 3mArms (SPS-606) |
||||
| Output Range | 0 to rating current continuously adjustable (Hi/Lo range switchable) | ||||
| METER | |||||
| Type | 3 1/2 Digit 0.39" LED Display | ||||
| Accuracy | ±( 0.5% of rdg + 2 digits ) | ||||
| INSULATION | |||||
| Chassis and Terminal | 20MΩ or above (DC 500V) | ||||
| Chassis and AC Cord | 30MΩ or above (DC 500V) | ||||
| POWER SOURCE | |||||
| AC 115V/230V ±15%, 50/60Hz | |||||
| DIMENSIONS & WEIGHT | |||||
| 128(W) x 145(H) x 285(D)mm Approx. 3.2kg |
|||||
