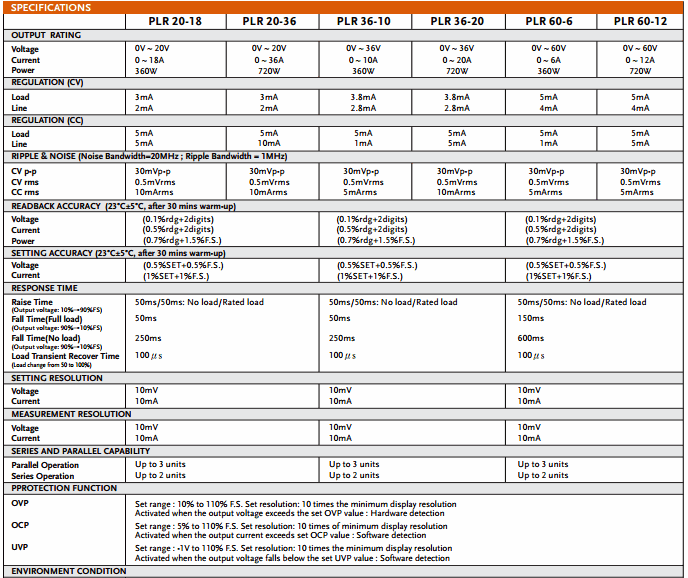

Voltage 0V ~ 60V
Current 0 ~ 6A
Power 360W
REGULATION (CV)
Load 5mA
Line 4mA
REGULATION (CC)
Load 5mA
Line 1mA
RIPPLE & NOISE (Noise Bandwidth=20MHz ; Ripple Bandwidth = 1MHz)
CV p-p 30mVp-p
CV rms 0.5mVrms
CC rms 5mArms
READBACK ACCURACY (23°C±5°C, after 30 mins warm-up)
Voltage (0.1%rdg+2digits)
Current (0.5%rdg+2digits)
Power (0.7%rdg+1.5%F.S.)
SETTING RESOLUTION
Voltage 10mV
Current 10mA
Power Source Single-phase 100VAC to 240VAC, 50Hz to 60Hz
Interface
RS-232C/LAN (Standard ) ; GPIB/USB (Option)
Analog Control Yes
Dimension & Weight 139.5 (H) x 140(W) x
415.5(D) Approx. 5.2kg
