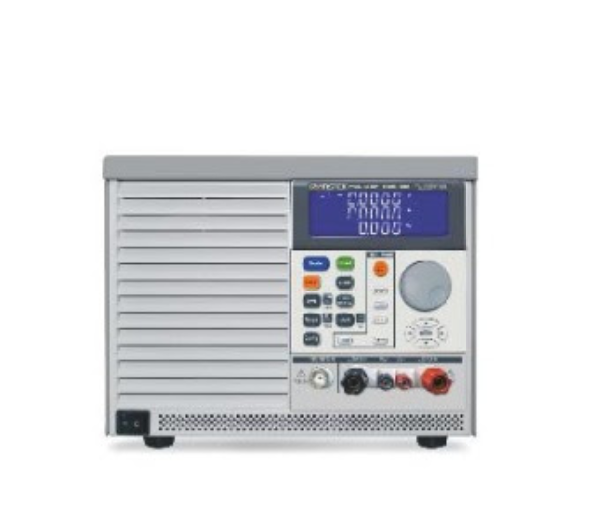

GW INSTEK PEL-507-500-30 DC Electronic Load (30A, 500V, 700W)

Power: 700 W

Current: 30A

Voltage: 500V

Min. Operating Voltage: 3V/@30A

Protections: OPP, OCP, OVP, OTP

CC Mode: 0~3A~30A , Accuracy: 0.1%

CR Mode: 0.2~20~1200000Ω , Accuracy: 0.2%

CV Mode: 0~60~500V , Accuracy: 0.05%

CP Mode: 0~70.2~700.2W , Accuracy: 0.5%

Dynamic Mode : 10uS to 9.999s, THIGH/TLOW

Surge Current: 0~30A, 10-1000ms

Battery Discharge Test: 0-81V, 1-99999s, 0.1~19999.9AH

Measurements: DCV, DCA, DCW

Power Input: 115/230Vac

Interface: USB/RS232

Dimension & Weight: 205x231x480 mm, 10.3kg

Accessories: Main unit, power cord, manual

Datasheet
