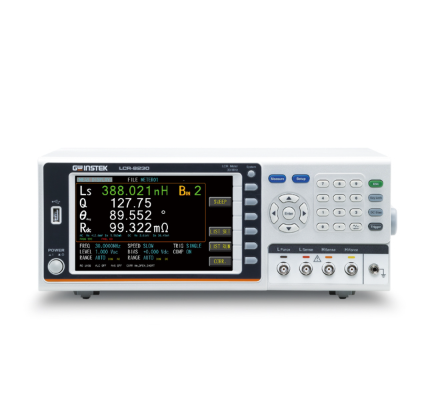

Test Frequency: DC, 10 Hz ~ 30 MHz; 6 digits, ±0.0007%
Output Impedance: 25 Ω / 100 Ω selectable
Basic Accuracy: ±0.08%
Test Speed:
MAX: 2.5 ms (>10 kHz)
FAST: 50 ms (>20 Hz)
MEDIUM: 100 ms
SLOW: 300 ms
SLOW2: 600 ms
Test Signal Level:
AC Voltage: 10 mV ~ 2 Vrms (FREQ. ≤ 1 MHz); 10 mV ~ 1 Vrms (FREQ. > 1 MHz or FREQ. ≤ 1 MHz and RO = 25 Ω)
AC Current: 100 μA ~ 20 mArms (RO = 100 Ω); 400 μA ~ 40 mArms (RO = 25 Ω)
DCR Voltage: 1 Vdc (40 mA max.)
Measurement Parameters:
Up to four parameters can be measured and displayed simultaneously.
Impedance (Z), Inductance (Ls / Lp), Capacitance (Cs / Cp), AC Resistance (Rs / Rp), Quality Factor (Q), Dissipation Factor (D), Admittance (Y), Conductance (G), Reactance (X), Phase Angle (θd / θr), Susceptance (B), DC Resistance (Rdc)
List Measurement:
Listed Steps: 15
Listed Parameters: Frequency / Vac / Iac / DC Bias / Comp / BIN
Trigger: AUTO, REPEAT, SINGLE
Sweep Measurement:
Swept Graphical: Two measurement parameters
Swept Parameters: Freq / Vac / Iac
Keep Trace function supported
Equivalent Circuit Model Analysis (for “A” series):
7 different equivalent circuit models
3-component models: 4 types
4-component models: 3 types
Other Functions:
Auto Level Control (ALC): Standard
DC Bias: 0 ~ ±12 V
Handler: PASS, FAIL and OK, NG or BIN 1–9
Other Features:
Correction: Open / Short / HF Load / Load
V/I Monitor: Vac, Iac, Vdc, Idc
Comparator: Value, Δ, Δ%
Buzzer: OFF, Pass, Fail
Average: 1 to 64
Display: 7" LCD color display (800 × 480)
Interface: USB / GPIB / LAN / RS-232 / Handler / USB Host / TRIGGER Input
Power Source: AC 100 V ~ 240 V, 50/60 Hz; Consumption: 65 VA (max.)
Dimensions & Weight: 346 (W) × 145 (H) × 335 (D) mm; Approx. 3.3 kg
