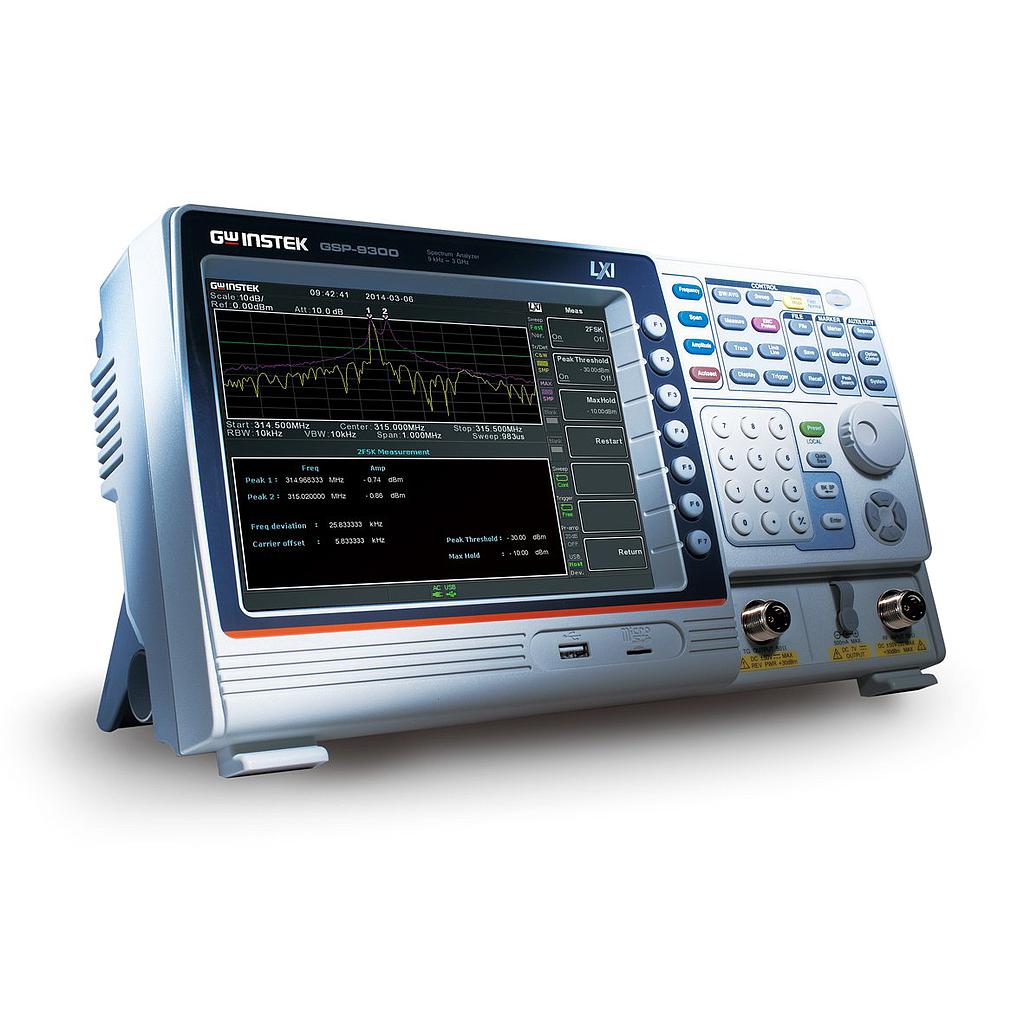

- Frequency Range: 9kHz ~ 3GHz
- High Frequency Stability: 0.025ppm
- 3dB RBW: 1Hz ~ 1MHz
- 6dB EMI Filter: 200Hz, 9kHz, 120kHz, 1MHz
- Phase Noise: -88dBc/Hz @1GHz, 10kHz Offset
- Built-in Measurement Functions: 2FSK Analysis, AM/FM/ASK/FSK Demodulation & Analysis, EMC Pre-test, P1dB point, Harmonic, Channel Power, N-dB bandwidth, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, Noise Marker, Frequency Counter, Time Domain Power, Gated Sweep
- Built-in Spectrogram and Topographic Display Modes
- 886MHz IF Output for User’s Extended Applications
- Remote Control Interface: LAN, USB, RS-232, GPIB (Optional)
- Built-in Preamplifier, 50dB Attenuator, and Sequence Function
- Optional 6GHz Power Sensor, Tracking Generator, Battery Back
|
Frequency
|
|||
|
Frequency
|
|||
|
|
Range
|
9 kHz to 3.0 GHz
|
|
|
Resolution
|
1 Hz
|
|
|
|
Frequency Reference
|
|||
|
|
Accuracy
|
±[(period since last adjustment X aging rate) + stability over temperature + supply voltage stability
|
|
|
Aging Rate
|
±2 ppm max.
|
1 year after last adjustment
|
|
|
|
Frequency Stability over Temperature
|
±0.025 ppm
|
0 to 50 °C
|
|
|
Supply Voltage Stability
|
±0.02 ppm
|
|
|
Frequency Readout Accuracy
|
|||
|
|
Start, Stop, Center, Marker
|
±(marker frequency indication X frequency reference accuracy + 10% x RBW + frequency resolution1)
|
|
|
Sweep points
|
601
|
Span >= 100 Hz
|
|
|
6 to 601
|
Span = 0 Hz
|
||
|
Marker Frequency Counter
|
|||
|
|
Resolution
|
1 Hz, 10 Hz, 100 Hz, 1 kHz
|
|
|
Accuracy
|
±(marker frequency indication X frequency reference accuracy + counter resolution)
|
RBW/Span >=0.02 ;
Mkr level to DNL>30 dB
|
|
|
Frequency Span
|
|||
|
|
Range
|
0 Hz (zero span), 100 Hz to 3 GHz
|
|
|
|
Resolution
|
1 Hz
|
|
|
|
Accuracy
|
± frequency resolution1
|
|
|
Phase Noise
|
|||
|
|
Offset from Carrier
|
|
Fc =1 GHz; RBW = 1 kHz, VBW = 10 Hz;Average ≥ 40
|
|
10 kHz
|
<-88 dBc/Hz
|
Typical2
|
|
|
100 kHz
|
<-95 dBc/Hz
|
Typical
|
|
|
1 MHz
|
<-113 dBc/Hz
|
Typical
|
|
|
Resolution Bandwidth (RBW) Filter
|
|||
|
|
Filter Bandwidth
|
1 Hz to 1 MHz in 1-3-10 sequence
|
-3dB bandwidth
|
|
200 Hz, 9 kHz, 120 kHz, 1 MHz
|
-6dB bandwidth
|
||
|
Accuracy
|
± 8%, RBW = 1 MHz
|
Nominal3
|
|
|
± 5%, RBW < 1 MHz
|
Nominal
|
||
|
Shape Factor
|
< 4.5:1
|
Normal Bandwidth ratio: -60dB:-3dB
|
|
|
Video Bandwidth (VBW) Filter
|
|||
|
|
Filter Bandwidth
|
1 Hz to 1 MHz in 1-3-10 sequence
|
-3dB bandwidth
|
|
[1] Frequency Resolution = Span/(Sweep points - 1)
[2] Typical specifications in this datasheet mean that the performance can be exhibited in 80% of the units with a 95% confidence level over the temperature range 20 to 30 °C. They are not covered by the product warranty.
[3] Nominal values indicate expected performance. They are not covered by the product warranty.
|
|||
|
Amplitude
|
|||
|
Amplitude Range
|
|||
|
|
Measurement Range
|
100 kHz to 1 MHz
|
Displayed Average Noise Level (DANL) to 18 dBm
|
|
1 MHz to 10 MHz
|
DANL to 21 dBm
|
||
|
10 MHz to 3 GHz
|
DANL to 30 dBm
|
||
|
Attenuator
|
|||
|
|
Input Attenuator Range
|
0 to 50 dB, in 1 dB step
|
Auto or manual setup
|
|
Maximum Safe Input Level
|
|||
|
|
Average Total Power
|
<= 33 dBm
|
Input attenuator
≥10 dB |
|
|
DC Voltage
|
± 50 V
|
|
|
1 dB Gain Compression
|
|||
|
|
Total Power at 1st Mixer
|
> 0 dBm
|
Typical;Fc ≥50 MHz; preamp. off
|
|
|
Total Power at the Preamp
|
> -22 dBm
|
Typical;Fc ≥50 MHz; preamp. on
|
|
|
|
|
mixer power level (dBm)= input power (dBm)-attenuation (dB)
|
|
Displayed Average Noise Level (DANL)4
|
|||
|
|
Preamp off
|
0 dB attenuation; RF Input is terminated with a 50 Ohm load. RBW 10 Hz; VBW 10 Hz; span 500 Hz; reference level = -60dBm; trace average ≥ 40
|
|
|
|
9 kHz to 100 kHz
|
< -93 dBm,
|
Nominal
|
|
|
100 kHz to 1 MHz
|
< -90 dBm - 3 x (f/100 kHz) dB
|
|
|
|
1 MHz to 10 MHz
|
< -122 dBm
|
|
|
|
10 MHz to 3 GHz
|
< -122 dBm
|
|
|
|
Preamp on
|
0 dB attenuation; RF Input is terminated with a 50 Ohm load. RBW 10 Hz; VBW 10Hz; span 500 Hz; reference level = -60dBm; trace average ≥ 40
|
|
|
|
100 kHz to 1 MHz
|
< -108 dBm - 3 x (f/100 kHz) dB
|
Nominal
|
|
|
1 MHz to 10 MHz
|
< -142 dBm
|
|
|
|
10 MHz to 3 GHz
|
< -142 dBm + 3 x (f/1 GHz) dB
|
|
|
[4] DANL spec shall exclude the Spurious Response
|
|||
|
Level Display Range
|
|||
|
|
Scales
|
Log, Linear
|
|
|
|
Units
|
dBm, dBmV, dBuV, V, W
|
|
|
|
Marker Level Readout
|
0.01 dB
|
Log scale
|
|
|
|
0.01 % of reference level
|
Linear scale
|
|
|
Level Display Modes
|
Trace, Topographic, Spectrogram
|
Single / split Windows
|
|
|
Number of Traces
|
