Specification:

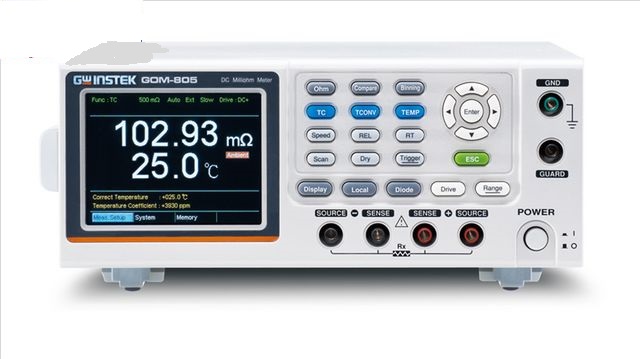

MODEL: GOM-805
DISPLAY: 50,000 counts
SAMPLING RATE: Slow: 10 readings / s
Fast: 60 readings / s
RESISTANCE MEASUREMENT:
Range / Test current (fixed): 50mΩ /1A; 500mΩ / 100mA; 5Ω / 100mA; 50Ω / 10mA; 500Ω / 1mA; 5kΩ / 100µA; 50kΩ / 100µA; 500kΩ / 10µA; 5MΩ / 1µA
Accuracy: 50mΩ : ± (0.1% of reading + 0.02% of range)
500mΩ ~ 50Ω : ± (0.05% of reading + 0.02% of range)
500Ω ~ 500kΩ : ± (0.05% of reading + 0.008% of range)
5MΩ : ± (0.2% of reading + 0.008% of range)
Resolution: 1µΩ, 10µΩ, 100µΩ, 1mΩ, 10mΩ, 100mΩ, 1Ω, 10Ω, 100Ω
TEMPERATURE:
Range: -50˚C ~399.9˚C
Accuracy: -10˚C ~40˚C : 0.3% ± 0.5˚C ; Other : 0.3% ± 1.0˚C
Resolution: 0.1˚C
DRY CIRCUIT: Open circuit less than 20mV;
For 500mΩ, 5Ω, 50Ω range only
DRIVE MODE: DC+/DC-, Pulsed, PWM, Zero
OTHER FUNCTIONS: Trigger – Internal, Manual, External、Math – ABS, REL, %, TC、Hi / Lo, Average 2 ~ 10 times、Measured delay、Go / No-Go、TC for Transformer, Diode、Continuity beeper、Sorting (only for GOM-805)
INTERFACE: USB, RS-232C, HANDLER/SCAN/EXT I/O, GPIB
Accessories: Quick Start Guide x 1, Power cord x 1, Test lead GTL-308 x 1, CD x1(complete user manual)
