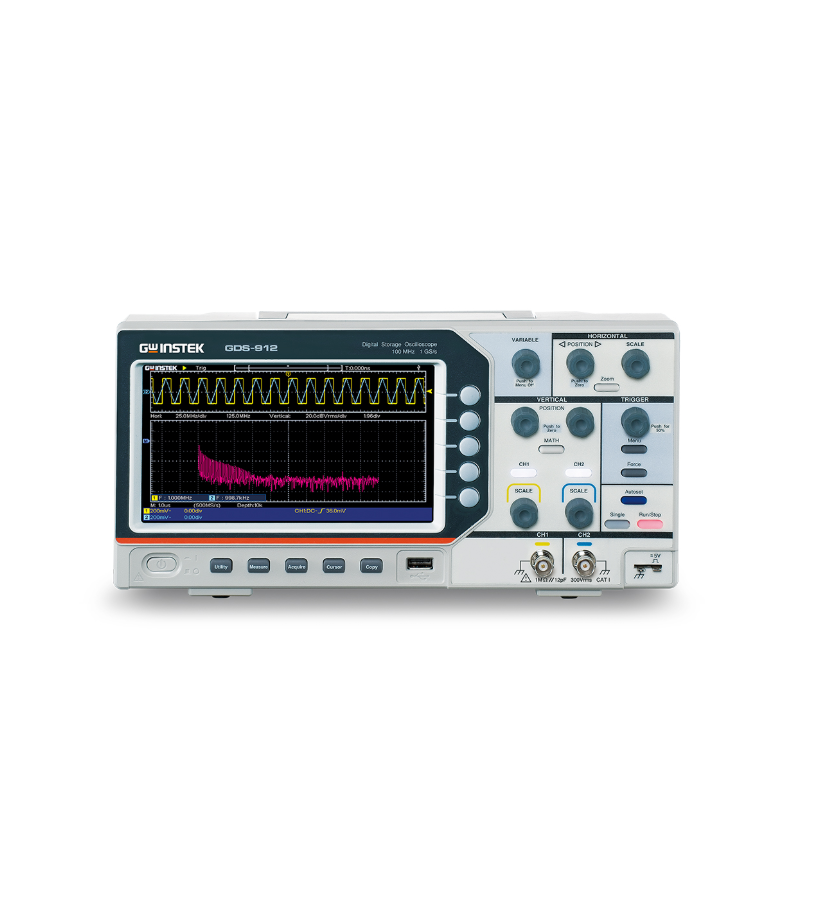

Bandwidth: 100 MHz
Channel: 2
Bandwidth Limit: 20 MHz
Calculated Rise Time: 3.5 ns (calculated)
Vertical Sensitivity
Resolution: 8 bits: 2 mV/div to 10 V/div
Input Coupling: AC, DC, GND
Input Impedance: 1 MO±2% in parallel with 12 pF±5 pF
DC Gain Accuracy: ±3%
Polarity: Normal & Invert
Maximum Input Voltage: 300 Vrms
Offset Position Range: ±1 V (2 mV/div to 100 mV/div); ±60 V (200 mV/div to 10 V/div)
Waveform Signal Process: +,-, x,FFT
Trigger
Source: CH1,CH2
Trigger Mode: Auto, Normal, Single
Trigger Type: Edge, Video (NTSC, PAL, SECAM), ALT
Holdoff Range: 100 ns to 10 s
Coupling: AC, DC
Sensitivity: 1 div
Horizontal
Time Base Range: 2 ns/div to 1000 s/div (1-2-5 increments)
Pre-trigger: Max. Record Length
Post-trigger: Record Length/2
Time Base Accuracy: ±100 ppm
Real Time Sample Rate: 1 GS/s (per-channel)*
Record Length: 20 Mpts / CH
Acquisition Mode: Normal, Peak detect, Average, Single
Peak Detection: 2.5 ns (typical)
Average: 4, 16, 64, 128 selectable
Display
Display Resolution: 7 inch LCD
TFT LCD Type: 800 horizontal x 480 vertical pixels
Interpolation: sin (x)/x
Waveform Display: Dots, vectors, variable persistence (1s 2s 5 s), infinite persistence
Display Graticule: 8 x 15 divisions
Display Mode: Y-T and X-Y
Interface
USB: USB 2.0 Host/Device (Only one type is supported at a time can't use both at the same time.), Host mode: Supporting Mass
Storage Class (FAT16/32) Device mode: Supporting USBTMC Class
