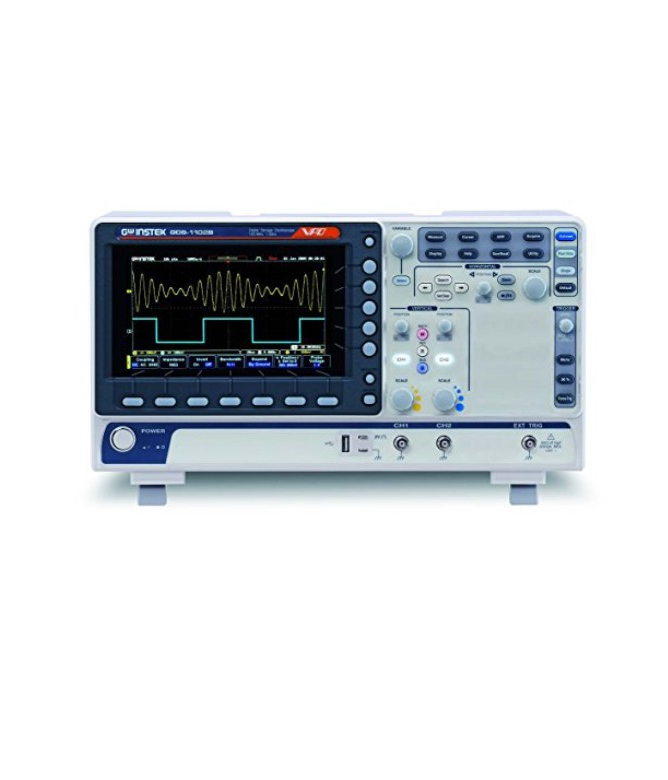

VERTICAL
Channels: 2 + Ext
Bandwidth: DC~100MHz(-3dB)
Calculated Rise Time: 3.5ns
Bandwidth Limit: 20MHz
Vertical Sensitivity Resolution: 8 bit : 1mV~10V/div
Input Coupling: AC, DC, GND
Input Impedance: 1MΩ// 16pF approx. ; GDS-1202B : 1MΩ// 14pF approx.
DC Gain Accuracy: ±3%
Polarity: Normal & Invert
Maximum Input Voltage: 300Vrms, CAT I (300Vrms CAT II with GTP-070B- 4/100B-4, 200B-4 10:1 probe)
Offset Position Range: 1mV/div : ±1.25V ; 2mV/div ~ 100mV/div : ±2.5V ; 200mV/div ~ 10V/div : ±125V
Waveform Signal Process: +,-, ×, ÷, FFT, FFTrms, User Defined Expression ; FFT: 1Mpts; FFT: Spectral magnitude. Set FFT Vertical Scale to
Linear RMS or dBV RMS ; FFT Window Display : Rectangular, Hamming, Handing, or Blackman-Harris
HORIZONTAL
Time base Range: 5ns/div ~ 100s/div (1-2-5 increments)
ROLL: 100ms/div ~ 100s/div
Pre-trigger: 10 div maximum
Post-trigger: 2,000,000 div maximum
Timebase Accuracy: ±50 ppm over any ≥1 ms time interval
Real Time Sample Rate: 1GSa/s max
Record Length: Max. 10Mpts
Acquisition Mode: Normal, Average, Peak Detect, Single
Peak Detection: 2nS (typical)
Average: selectable from 2 to 256
DISPLAY
TFT LCD Type: 7" TFT WVGA color display
Display Resolution: 800 horizontal × 480 vertical pixels (WVGA)
Interpolation: Sin(x)/x
Waveform Display: Dots, vectors, variable persistence (16ms~4s), infinite persistence
Waveform Update Rate: 50,000 waveforms per second, maximum
Display Graticule: 8 x 10 divisions
Display Mode: YT, XY
POWER SOURCE: AC 100V ~ 240V , 50Hz ~ 60Hz , Auto selection , Power consumption: 30 Watts
