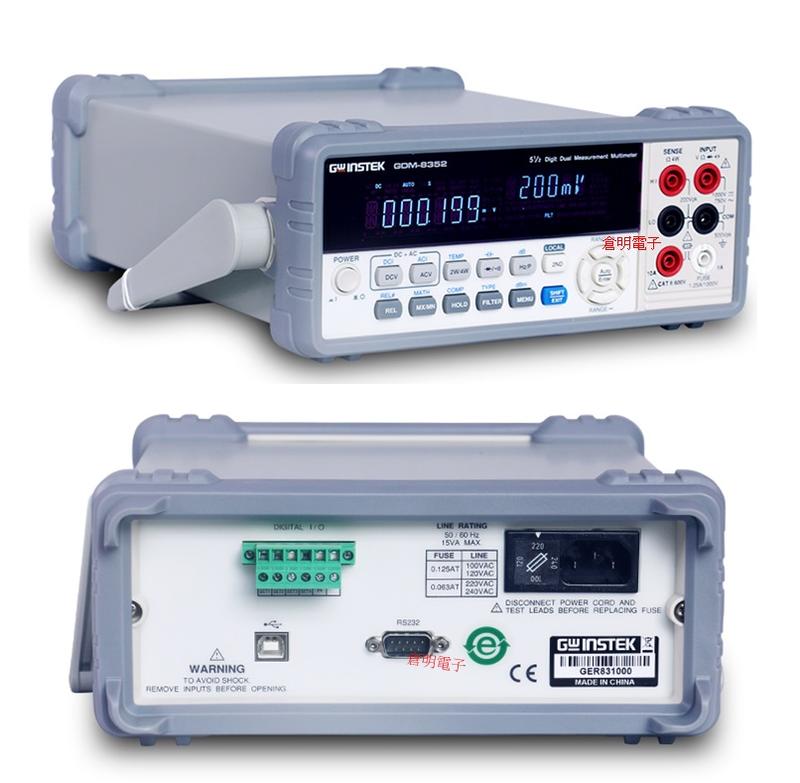

GW INSTEK GDM-8352 Dual Measurement Multimeter (1000V, 10A)

DCV accuracy: 0.012%

High current range: 10A

High Voltage range: 1000V

High ACV frequency response: 100kHz

The fastest sampling rate is (320 Readings / sec)

for ADC and PC transmission.

 The diode test open-circuit voltage is ≑ 6V/1mA.

240000 count display

Multiple functions: ACV, DCV, ACI, DCI, 2WR,

4WR, Cap, Freq, Period ,Temp, Continuity,

Diode test, MAX/MIN, Avg, REL, dB, dBm,

Hold, MX+B, 1/X, REF, %, Compare.

 Manual or Auto ranging

 AC true RMS

 Data logging to PC using an Excel Add-In

Datasheet

Standard Accessories

Part number/ Description

82DM-83520E x1 CD-ROM (User Manual,

Software, Driver)

82DM-83521M x1 Safety Instruction Sheet

GTL-207 Test leads

Optional

Accessories

Part number /Description

GTL-246 USB Cable, USB 2.0, A-B type,

1200mm

GTL-205 Temperature Probe Adapter wit
