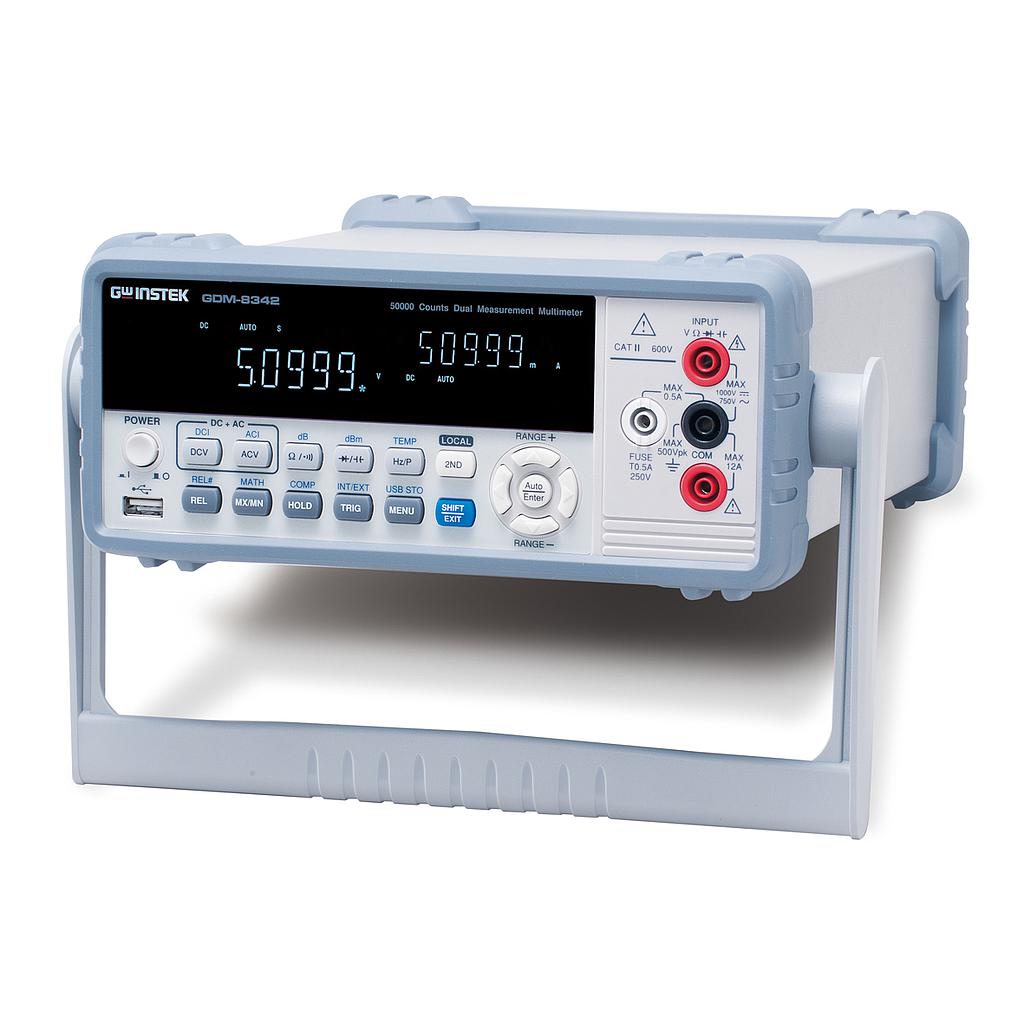

GW INSTEK GDM-8342 Digital Multimeter (0.02% (tương đương 5 1/2digit), USB storage)

Function

Range (*2)

Resolution

Input

Resistance
etc.

Accuracy(*1)
1 Year

23°C±5°C

DC Voltage

500.00 mV

10μV

10MΩ or >10GΩ

0.02 + 4

5.0000 V

100μV

10MΩ or >10GΩ

0.02 + 4

50.000 V

1mV

11.11MΩ

0.02 + 4

500.00 V

10mV

10.1MΩ

0.02 + 4

1000.0 V

100mV

10MΩ

0.02 + 4

Resistance

500.00 Ω

10mΩ

0.83mA

0.10 + 5 (*3)

5.0000 kΩ

100mΩ

0.83mA

0.10 + 3 (*3)

50.000 kΩ

1Ω

83μA

0.10 + 3

500.00 kΩ

10Ω

8.3μA

0.10 + 3

5.0000 MΩ

100Ω

830nA

0.10 + 3

50.000 MΩ

1kΩ

560nA//10 MΩ

0.30 + 3

DC Current

500.00 μA

10nA

0.06V max.

0.05 + 5

5.0000 mA

100nA

0.6V max.

0.05 + 4

50.000 mA

1μA

0.14V max.

0.05 + 4

500.00 m A

10μA

1.4V max.

0.10 + 4

5.0000 A

100μA

0.5V max.

0.25 + 5

10.000 A

1mA

0.8V max.

0.25 + 5

Continuity

5000.0 Ω

100mΩ

0.83mA

0.10 + 5

Diode Test

5.0000 V

100μV

0.83mA

0.05 + 5

Capacitance

5.000 nF: 0.5~1nF

0.001nF

8.3μA

2.00 + 20

5.000 nF: 1~5nF

0.001nF

8.3μA

2.00 + 10

50.00 nF: 5~10nF

0.01nF

8.3μA

2.00 + 30

50.00 nF: 10~50nF

0.01nF

8.3μA

2.00 + 10

500.0 nF

0.1nF

83μA

2.00 + 4

5.000 μF

1nF

0.56mA

2.00 + 4

50.00 μF

10nF

0.83mA

2.00 + 4

True RMS Volatge
AC (or AC+DC)

(*4/*5/*6)

500.00 mV

10μV

30Hz – 50Hz

1.00 + 40

50Hz – 10kHz

0.50 + 40

10kHz – 30kHz

2.00 + 60

30kHz – 100kHz

3.00 + 120

5.0000 V

100μV

30Hz – 50Hz

1.00 + 20

50Hz – 10kHz

0.35 + 15

10kHz – 30kHz

1.00 + 20

30kHz – 100kHz

3.00 + 50

50.000 V

1mV

30Hz – 50Hz

1.00 + 20

50Hz – 10kHz
