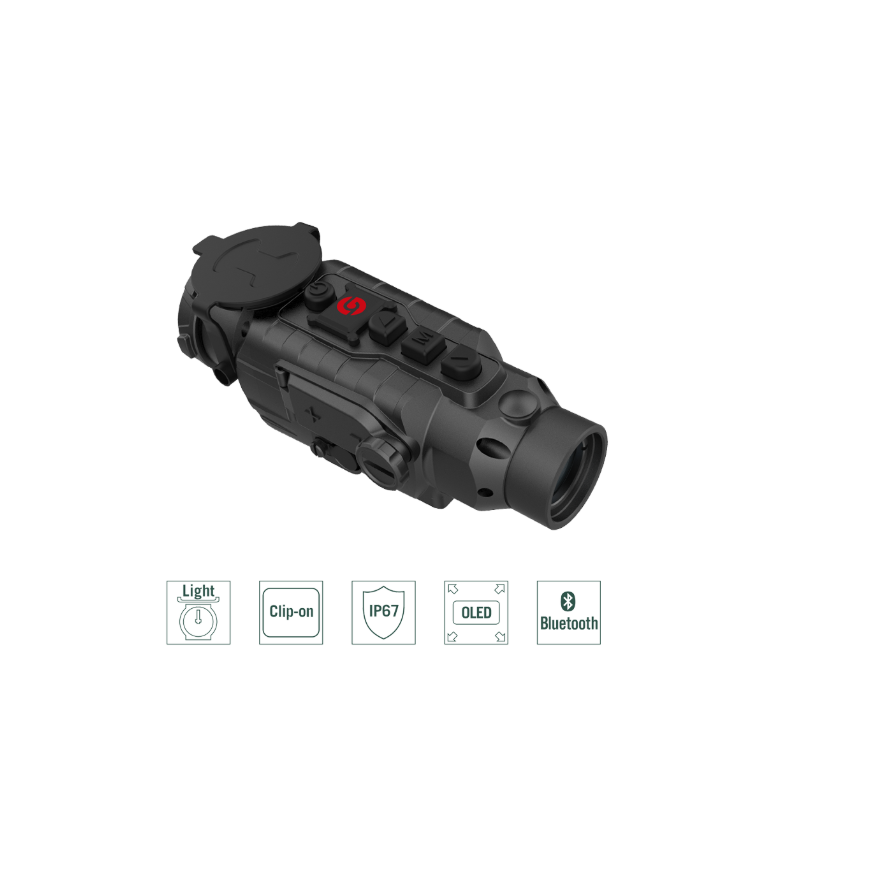

Guide TA435 Clip-on Thermal Imaging Attachment (8μm～14μm; 10.66°×8.0°)

Detector

Resolution: 400×300@17μm

Spectral Range: 8μm～14μm

NETD: ≤50mk@25°C /F1.0

Focus lens

Focal Length: 35mm F1.2

Focusing: Manual focus

FOV: 10.66°×8.0°

Image Processing

Frame Rate: 50Hz（PAL）/60Hz（NSTC）

Digital Zoom: 2×, 4×

Auto Tracking: Hotspot track

Calibration: Automatic calibration/ Manual calibration(shutter) /Manual scene compensation

Color Palettes: Black hot, white hot, red hot, green hot

Contrast/Brightness: Adjustable

Power Systems

Battery: CR123A×2/ICR16340×2

Charging: On External charger

Working Time: Continuous Operating over 3 hours@25°C

Interface

4-Pin LEMO Interface: Analog & video output

Display system

OLED: Colorful 0.39 inch OLED screen 1024×768

Pupil Distance: 10mm

Pupil Caliber: 20mm

Video Format: PAL/NTSC

Digital Zoom: 1

View Finder: Monocular display(×2) ±5 adjustable diopter

Environment parameter

Operating Temperature: -30°C-50°C

Storage Temperature: -45°C-70°C

Humidity: Working and storage 10% ～ 95%, Non condensing

Impact: 500G/1ms

IP level: IP67

Certificate: RoHS Certificate/CE Certificate/FCC Certificate

Physical Characteristics

Weight:≤400g

Size: 150mm×52mm×57mm

Package

Standard: Thermal infrared imager, User manual, Blinder, Warranty

Optional: Adapter ring, External eyepiece,

CR123A×2 (unrechargeable) battery, ICR16340×2(rechargeable) battery, Charger, Bluetooth remote controller, Lemo video cable, Picatinny rail

Cover ring adapter A： Compatible with 38/40/42/44/46mm;

Cover ring adapter B： Compatible with 48/50/52/54mm;

Cover ring adapter C： Compatible with 56/58/60/62/64mm;

Detection Range

Human： 1.8m×0.5m: 1000m

Vehicle： 2.3m×2.3m: 2400m

Recognition Range

Human： 1.8m×0.5m: 500m

Vehicle： 2.3m×2.3m: 1000m
