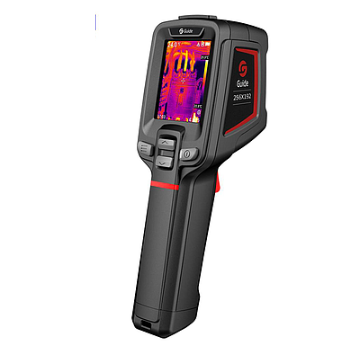

Guide PC230 Tool-Like Thermal Camera (-20~550℃; 256*192)

IR image & Optical

- Detector type: 256×192@12μm, VOx

- Spectral: 7.5~14μm

- Frame rate: 25Hz/9Hz

- Thermal sensitivity / NETD: 50mK

- Focal length: 7mm

- Field of view(FOV): 25°×19°

- Min focus distance: 0.5m

- D:S: 130:1

- Focus: Focus-automatic

Visible camera

- Resolution: 200W pixel, Resolution optional (240×320/1600×1200)

- Flashlight: Yes

Image display

- Display: 2.4" LCD screen

- Display resolution: 240×320

- Image model: IR, Visible, Picture-in-Picture, MIF

- Color palettes: 6:White Hot, Iron Red, Hot Iron, Arctic, Rainbow 1, Rainbow 2

Temperature Measurement

- Temperature range: -20°C-150°C, 100°C-550°C (Auto switching)

- Accuracy: ±2°C or ±2%, whichever is greater (target temp ≥0°C, ambient temp is 5°C~30°C)

Image Storage

- Storage media: TF card (Standard 16G, up to 32G)

- Image format: IR/MIF/PIP

Connections & Communications

- USB: TYPE-C, TF Card slot

- Laser: Yes

- Tripod interface: Yes

- PC IR Analysis Software: Yes

Power System

- Battery type: Rechargeable Li-ion battery

- Battery operating time: 16 hours

- Charging time: Internal charge, ≤2.5 hours

Environmental Parameters

- Operating temperature: -15°C~50°C

- Storage temperature: -40°C~70°C

- Encapsulation: IP54, 2-meter drop test

- Certification: CE/ROHS/FCC/PSC/KC/UN38.3/IP54

- Weight: about 375g

- Size: 194mm×61.5mm×76mm

Standard accessories:

- Charger + Adapter

- TYPE-C USB cable

- Wrist Strap

- Quickstart Guide

- Data Download Card

- 16G TF Card
