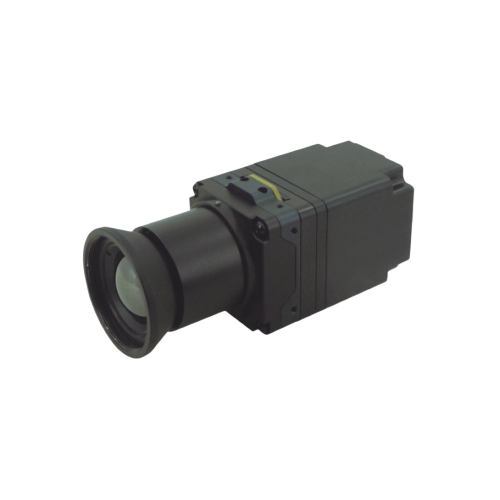

Guide OR2 General Thermal Module for Temperature Measurement (-20°C~150°C)

IR Detector

Detector type: Uncooled VOx Micro bolometer

Resolution: 384x288

Pixel pitch: 25μm

Spectral range: 8μm-14μm

Lens

Minimum Focus: 19mm/8.8mm

Focus: Fixed Focus

FOV: 28.4°x21.5°/ 57.2°x44.5°

Measurement

Temperature Range: -20°C~150°C

Accuracy: ±2 or 2%


Image Storage Format: JPG

Video Storage Format: Standard H.264 compressed video

Ethernet

Function: Control and image transmission

Type: 100m

Network interface: RJ45

Video-streaming: RTSP

Software

Digital zoom: x2, x4

Compensation: Yes

Set-up Temperature Unit: Yes

Add Analysis Object: Point, line, rectangle

Alarm: Yes, cursor display

Time-lapse Video: Yes

Time-lapse Picture: Yes

Color palettes: 8

Power Supply

Input Power: 12VDC（low-power consumption）

Voltage: 9V~15V

Environmental

Operating Temperature Range: -10°C~50°C

Non-Operating Temperature Range: -40°C~70°C

Humidity: ≤95%

Vibration: 2g (IEC 60068-2-6)

Shock: 25g (IEC 60068-2-29)

Interfaces

Electrical Interface: RJ54，Power，SD card

Mechanical

Weight: 260g

Size (Without lens): 100mm x 45mm x 45mm

Certification: ROHS，CE
