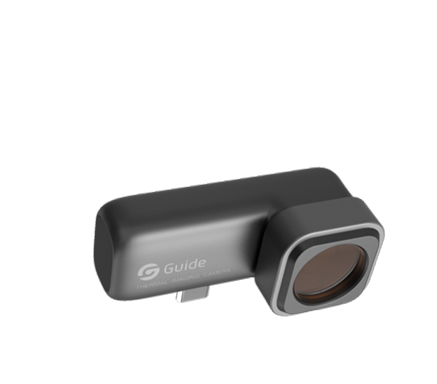

Guide Mobir 2S-10X Thermal Camera for Smartphone (256 ×192@12 μm, -20℃-150℃, 10X macro lens)

Infrared detector:

Detector type: VOx

Infrared resolution: 256 ×192@12 μm

Wavelength range: 7.5~14μm

Frame rate: 25 Hz

Lens: 3.2 mm 7 mm

Field of view: 25°

Focusing mode: Automatic/Electric

Temperature measurement

Measurement range: -20℃-150℃

Measurement accuracy: ±2°C or ±2% whichever is greater

Measurement: Spot, line, area

Macro function

Magnification: 10X

Observed altitude(mm): 40.23/72.71

Visual range(mm): 15.87×11.9/29.95×22.46

Environmental parameters

Working temperature: -10°C to 60°C

IP rating: IP43

Drop: 1m drop test (without the type-c interface)

Certification CE, FCC, RoHS

Physical parameters

External interface: USB Type-C male

Weight: ≤50g

Size: 59 ×24 ×20 mm

Color: Silver/Grey

Standard:  A device, Carrying box, Wrist strap, User manual, Certificate of approval, Macro Lens
