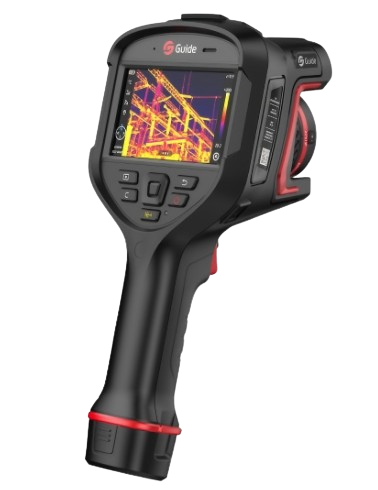

Guide H2S Intelligent Thermal Camera (25° × 19°, 256×192; -40℃~2000℃; option lens)

Imaging and Optics

Core technology: Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm SharpIR 2.0

Detector type: VOx, 7.5–14 μm

Infrared resolution: 256 × 192 @12 μm

Super resolution: Yes, upgrade to 512 × 384

NETD: 15 mK

Frame rate: 50 Hz / 9 Hz

Focal length: 6.8 mm

Field of view: 25° × 19°

IFOV: 1.70 mrad

Minimum object distance: 0.15 m

D:S: 588:1

Focusing mode: Manual / Automatic / Touch autofocus / Continuous autofocus

Digital zoom: 1.1× to 8×

Measurement and Analysis

Measurement range: Auto-switching supported:-40°C to 150°C; 0°C to 650°C; 500°C to 2000°C (RangeMax Ultra-wide lens kit required)

Measurement accuracy: ±2°C or ±2% (whichever is greater)

Analyzed targets: 5 (Spot / Line / Area)

Alarm: Full-screen temperature threshold alarm (Image, Voice, Color, Flash)

Others: Customizable physical button, OTA update

Image Display

Display screen: 4.3" LCD touchscreen, 800 × 480

Image modes: IR, VIS, MIF, PIP

Color palettes (15): White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Green Hot, Ice & Fire, Amber

Image adjustment: Level/Span modes – Automatic, Semi-automatic, Manual, Local dimming

Digital camera: 5 MP

Functions

Laser: Laser pointer; laser ranging 0.1 m to 40 m

Recording: Photo & Video

Cloud services: Supported

Storage and Transmission

Storage media: Built-in (64 GB) + external SD card (64 GB up to 256 GB)

Image storage: JPG (with temperature data)

Video storage:MP4 (without temp data, supports audio recording); IRGD (with temp data), up to 50 Hz (optional)

External interfaces: USB-C, SD card slot, tripod mount

Wi-Fi: Yes (real-time image & video transmission to mobile devices)

Bluetooth: Bluetooth 5.0 (image transfer, Android only)

Power System

Battery type: Rechargeable lithium-ion

Operating time: 5 hours

Environmental Parameters

Operating temperature: -20°C to 50°C

IP rating: IP54

Drop test: 2 m

Physical Parameters

Hardware: Wi-Fi, dual illuminators, microphone, speaker, electronic compass, GPS

Weight: 1.24 kg (with standard lens & battery)

Dimensions: 292 × 125 × 125 mm

Software

PC: ThermoTools

Mobile: FocusIR (iOS / Android)

Standard Accessories: Device (with lens), lens caps (front & rear), 2 lithium-ion batteries, desktop charger, power adapter, plug adapter, USB-C to USB-C cable, USB-A to USB-C cable, USB-C to Ethernet adapter, SD card (64 GB), wrist strap, shoulder strap, carrying bag, safety case, quick start guide, warranty card, inspection report, calibration certificate

Optional Accessories:

Optional lenses: Wide-angle (44°); Medium telephoto (15°); Telephoto (7°); TwinView DFOV (25°+15° / 25°+45°); RangeMax Ultra-wide Kit (25° / 15° / 7°); Other options: Tripod, docking station, Ethernet cable
