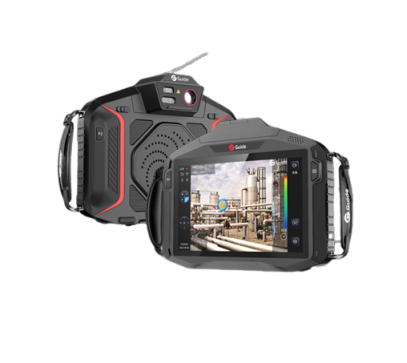

Guide FA611 Acoustic & Thermal Imaging Camera (640×512@12μm, -40°C~150°C, 0°C~650°C)

Acoustic Sensor

Microphone array: 128 low-noise MEMS microphones

Bandwidth: 0 kHz to 65 kHz, Adjustable range

SPL range: 0~120 dB

Frame rate: 30 Hz

Thermal Sensor (Thermal module required)

Detector type: VOx, 640×512@12μm

Focal length: 13mm/17.7mm

Measurement range Support auto-switching: -40°C to 150°C, 0°C to 650°C

Measurement accuracy: ±2°C or ±2%, whichever is greater

Image display

Display screen: 10.1’’ LCD, touch screen, 1920×1200

Digital camera: 13MP

Others

Laser: Support laser indication, laser ranging range of 0.1m to 35m

Operating time: Built-in battery + External battery: 4 hours

Weight: 1.7kg to 2kg (with built-in battery)

Size: 309×243.5×74mm/309×243.5×100mm
