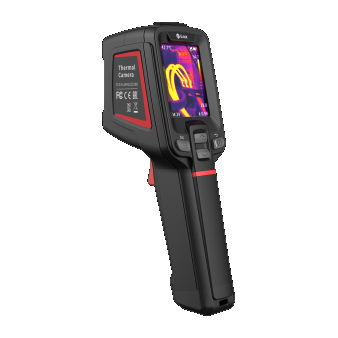

Guide E1+S Tool-like Thermal camera (120×90@12μm ; 15mK; -20°C~550°C)

Imaging and optics:

Core Technology Item : Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm SharpIR 2.0

Detector type : VOx, 7.5 to 14μm

Infrared resolution : 120×90@12μm

Super resolution : Support real-time super-resolution reconstruction, Upgrade to 240×180

NETD : 15mK

Frame rate : 25Hz/9Hz

Focal length:  1.6mm

Field of view:  50°×38°

IFOV : 7.27mrad

Min. object distance : 0.1m

D:S : 138:1

Focusing mode : Focus-free

Measurement and analysis:

Measurement range : Support auto-switching: -20°C to 150°C, 0°C to 550°C

Measurement accuracy : ±2°C or ±2%, whichever is greater

Analyzed target : Center spot; Three Fixed Areas: Small, Medium, Large (Alternative)

Alarm : Full screen temperature threshold alarm (Image and Flash)

Image display:

Display screen : 2.4" LCD

Image mode:  IR, VIS, MIF, PIP

Color palettes : 6: Iron Red, White Hot, Arctic, Rainbow 2, Hot Iron, Rainbow 1

Image adjustment : Level span mode: Automatic, Semi-automatic, Manual

Digital camera:  2MP

Functions:

Laser : Laser Indication

Recording function : Photo and Video

Storage and transmission:

Storage media:  Built-in (16 GB)

Image storage:  JPG with temp info

Video storage : Supports real-time video streaming, video storage format in Irgd (with temp info)

External interface:  USB-C, Tripod socket

Wi-Fi: Yes, it can be connected to the mobile terminal for image and real-time video transmission

Power system:

Battery type:  Rechargeable lithium-ion battery, non-removable

Operating time:  8 hours

Environmental parameters:

Working temperature:  -15°C to 50°C

IP rating : IP54

Drop : 2m drop test

Physical parameters:

Hardware:  Illuminator

Weight : 355g

Size : 194×61.5×76mm

Software kit :  PC: ThermoTools; Mobile: FocusIR (iOS/Android)

Standard : A device, Wrist strap, Power adapter, Adapter plug, USB-A to USB-C cable, Quick Start Guide, Warranty card

Options : Tripod
