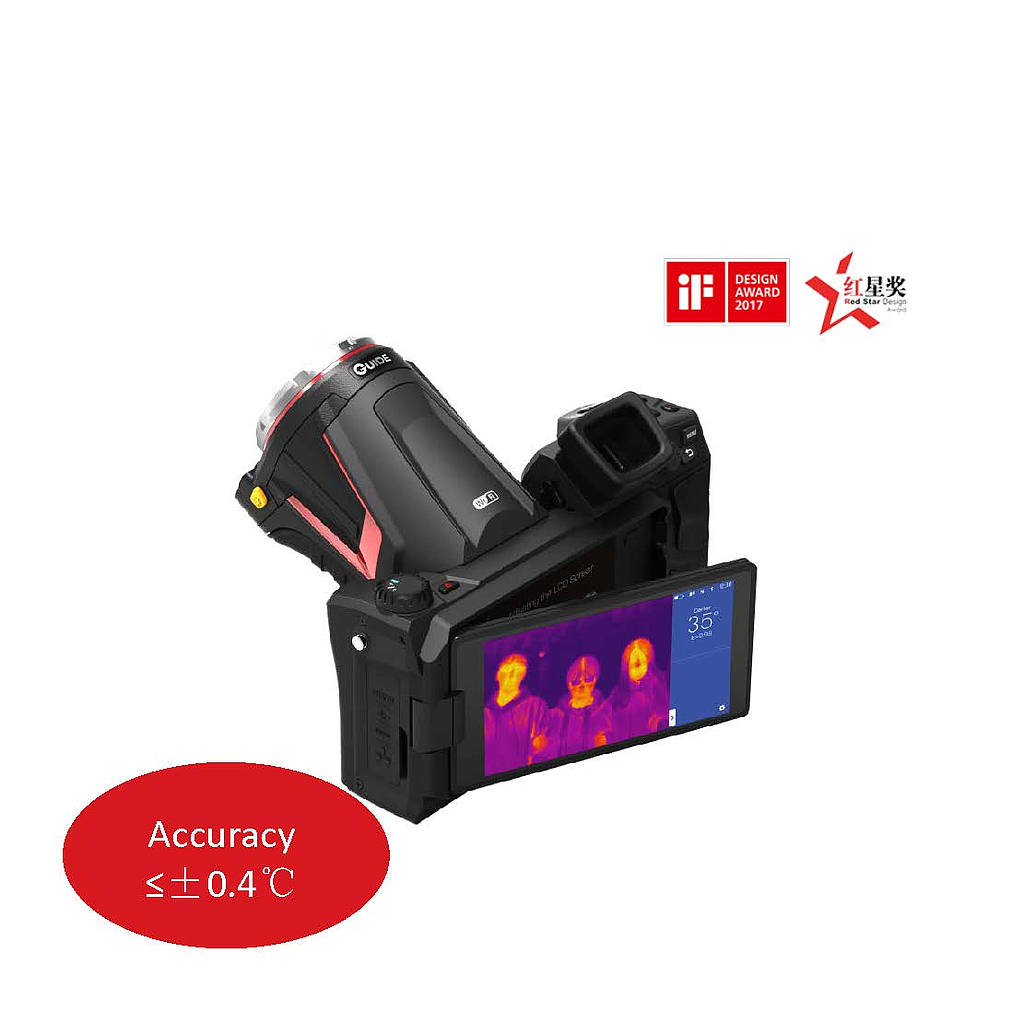

Guide C400M Infrared Fever Warning System (20°C~60°C, ≤±0.4℃)

IR detector

IR resolution: 384×288

Detector type: VOx/25μm/7.5~14μm

Frame rate: 25Hz/9Hz

NETD: 40mk

Focal length: 25mm/F1.0

Field of view (FOV): 21.7°×16.4°

Spatial resolution (IFOV): 0.99mrad

Min focus distance: 0.4m

Focus: Electric, Automatic

Image Presentation:

LCD display: 5",1280×720 High Light Touch Screen

Viewfinder: 1280×960 LCOS Screen

Brightness contrast: Automatic, Manual, Fixed

Image mode: IR image, Visual image, PIP, MIF

Color palette: 8

Digital zoom: 1.1~4x

Temperature Measurement

Measurement Range: 20°C~60°C

Accuracy: ≤ ±0.4℃ (target temperature 32℃~38℃)

Spot/Line/Area: 5 spots, 5 lines, 5 Areas

Other

Hardware: Visual camera of 5 million pixels, Illuminator, laser, Wi-Fi, Microphone (Volume adjustable), Speaker (Volume adjustable), Digital compass, GPS, Light sensor

Interface: Micro USB 2.0,SD card,Gigabit Ethernet,Tripod,Mini HDMI

Battery: Rechargeable Li-ion Battery(Certified to UN38.3), battery time > 4 hours, support Sleeping mode

Working Temperature: 15°C~35°C

Storage Temperature: ﹣40°C~70°C

Encapsulation: IP54

Weight: 1350g

Size: 206mm×145mm×135mm

Standard Accessories: Li-ion battery,Power supply adapter, Adapter plug (5 pcs), Shoulder strap,USB cable, HDMI cable, Network cable, Quick Start Guide, User Manual, Data Download Card, SD card(16G), Hard transport case

Optional Accessories: Tripod, wireless mouse & keyboard & Micro USB OTG cable, 24 inch monitor (HDMI interface) & changeover plug., Li-ion battery, Pouch, Battery charger, Bluetooth earphone, Extended lens, Lens bag

Datasheet
