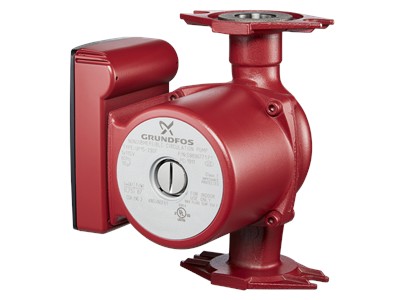

Grundfos UP 15-42 B5 Circulator Pump (3.9 m³/h)

Technical

Speed no: 1

Max. flow: 3.9 m³/h

Maximum head: 4.6 m

Approvals

UL, CSA

Materials

Pump housing: Bronze (EN 2.1176.01)

Impeller: Composite, PES

Installation

Maximum ambient temperature: 40 °C

Ambient max at 80 °C liquid: 80 °C

Maximum operating pressure: 10 bar

Type of connection: USA Sweat / Brz. Sweat

Pipe connection: 1/2" Sweat

Pressure rating for connection: PN 10

Port-to-port length: 127 mm

Terminal box position: 9H

Liquid

Pumped liquid: Water

Liquid temperature range: 2 .. 110 °C

Selected liquid temperature: 60 °C

Density: 983.2 kg/m³

Electrical Data

Max. power input: 85 W

Mains frequency: 60 Hz

Rated voltage: 1 x 115 V

Current in speed 3: 0.74 A

Number of poles: 2

Insulation class (IEC 85): F

Ex-protection standard: CONTACT

Thermal protection: Internal

Controls

Terminal box position: 9H

Others

Gross weight: 2.72 kg
