Item		Description
Number of analog input channels		10 channels
External Input/Output		Trigger input, Logic input 4 ch or Pulse input 4 ch, Alarm output 4 ch
Sampling interval		100 ms to 1 h (Max:100 ms/10ch)
TIME/DIV		1 sec/DIV to 72 h/DIV
Trigger function		Type	Start	Data capture starts when a trigger is generated
			Stop	Data capture starts when a trigger is generated
		Condition	Start	Off, Level, Alarm, Scheduled time, External, Day
			Stop	Off, Level, Alarm, Scheduled time, Time, Day, External
		Condition	Analog	H, L, Window In, Window Out, Rate of change
			Logic	H, L
			Pulse	H, L, Window In, Window Out, Rate of change
Alarm output	No. of channels	4
	Output format	Relay contact output (NO/NC)
	Output conditions	Level judgement, Window judgement, Logic pattern judgement, Pulse judgement
	Output terminal	M4 screw terminal
	Rating	250 VAC/2A, 30 VDC/2A
Pulse input range	Count mode	50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M C/F.S. (max. 50 k/sampling interval)
	Inst. Mode	50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M C/F.S. (max. 50 k/sampling interval)
	RPM mode	50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M RPM/F.S. (max. 50 k/sec)
Calculation function	Statistics calculation *1	Average, Peak, maximum, Minimum, RMS (2 calculations can be set simultaneously)
	Calculation between channels	Addition, Subtraction, Multiplication, Division (for analog input ch1 to ch10)
Wet-and dry-bulb temperature conversion		Humidity is calculated from the measured temperature of Wet-bulb and Dry-bulb (Dry bulb : fixed to ch1, Wet bulb : fixed to ch2, Range 0 to 100 %)
Other function		Searching, Annotation input, Message, Marker function
Interface to PC		Ethernet (10BASE-T / 100BASE-TX), USB (Compatible with full speed)
Ethernet function		Web server function, FTP server function, FTP client function, NTP client function
USB function		USB drive mode (File transfer/delete of internal memory)
Internal storage device		Internal flash memory : 14 Mbyte, USB memory slot (compatible with full speed) *2
Display	Size	5.7 inch TFT color LCD
	Displayed items	Waveforms + Digital values (vertical, horizontal), Digital + Calculation, Bar graph (vertical)
Clock accuracy (23°C environment)		±0.002 % (within approx. 50 sec per month)
Operating environment		Temperature : 0 to 50 °C, Humidity : 5 to 85 % R.H.
Withstand voltage		Between each input channel and GND: 1 minute at 350 Vp-p
		Between input terminals: 1 minute at 350 Vp-p
Power supply		100 to 240 V AC / 50 to 60 Hz, M4 screw terminal (Power cord is not attached)
Power consumption		38 VA (when LCD is ON)
External dimensions (W x H x D)(approx.)		144 mm x 144 mm x 200 mm
Weight (approx.)		2.1 kg
Vibration resistance		Compatible with JIS Vibration testing methods for automobile Type 1 Class A-equivalent
		Dust proof, Drip proof: IP65 compatible (for front panel only)

Item			Description
Type of input terminal			M4 screw type terminal
Measurement range	Voltage		20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, V, 1-5 V F.S.
	Temperature		Thermocouple : K, J, E, T, R, S, B, N, W (WRe5-26)
			R.T.D. : Pt100, JPt100, Pt1000 (IEC751)
	Humidity		0 to 100 % RH (Voltage 0 to 1 V conversion, when using optional B-530 humidity sensor is used)
Input filter			Off, 2, 5, 10, 20, 40 (Moving average)
Measurement accuracy *3	Voltage		±0.1 % of F.S.
	Thermocouple		Measurement range	Accuracy
	R/S		0 TS 100 °C 100 < TS 300 °C R : 300 < TS 1600 °C S : 300 < TS 1760 °C	± 5.2 °C ± 3.0 °C ± (0.05 % of rdg + 2.0 °C) ± (0.05 % of rdg + 2.0 °C)
	B		400 TS 600 °C 600 < TS 1820 °C	± 3.5 °C ± (0.05 % of rdg + 2.0 °C)
	K		-200 TS -100 °C -100 < TS 1370 °C
	E		-200 TS -100 °C -100 < TS 800 °C
	T		-200 TS -100 °C -100 < TS 400 °C
	J		-200 TS -100 °C -100 < TS 100 °C 100 < TS 1100 °C
	N		0 TS 1300 °C
	W		0 TS 2000 °C
	R.T.D.	Pt100	-200 to 850 °C (FS = 1050 °C)
		JPt100	-200 to 500 °C (FS = 700 °C)
		Pt1000	-200 to 500 °C (FS = 700 °C)

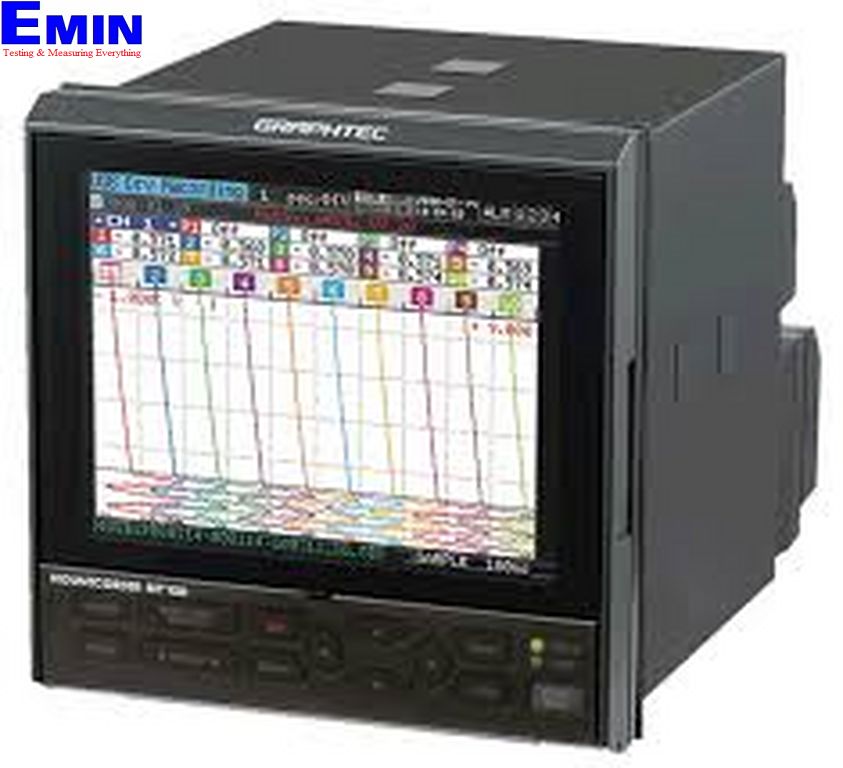

Graphtec MT100 Paperless Mount Recorder
