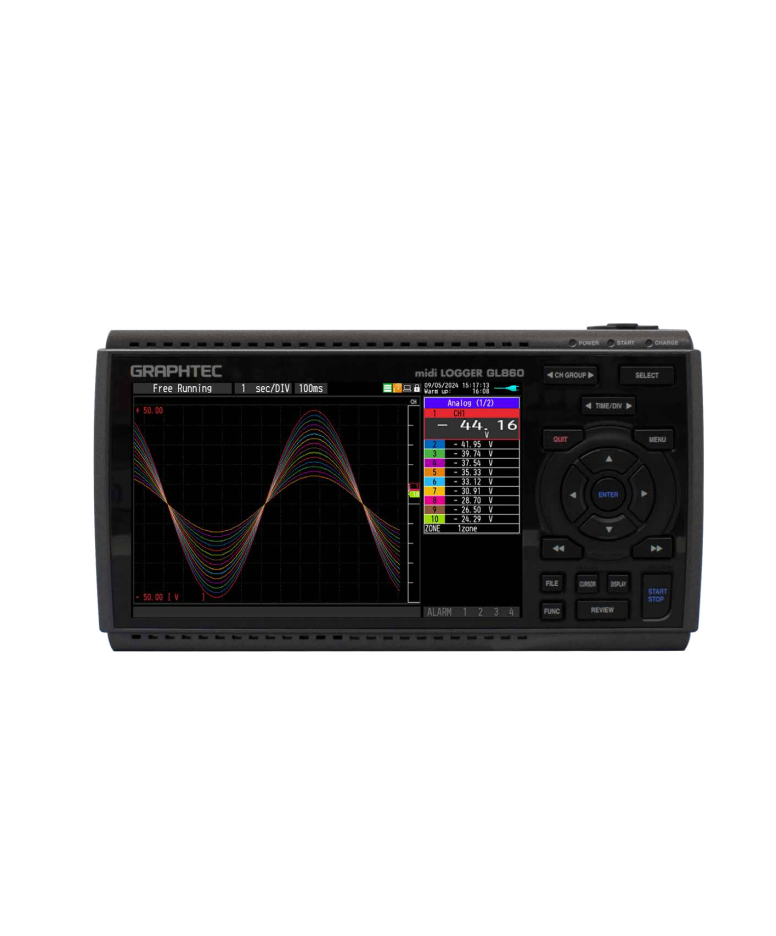

GRAPHTEC GL860 Isolated Multi-CH Data Logger

Number of analog input channels: 1 unit (20CH/30CH) , or extension unit (Max. 200CH)

External input/output

Input

Input: Trigger or Sampling (1 channel), Logic/Pulse (4 channels)

Input voltage range: 0 - +24V (single-ended input)

Input signal: No-voltage contact (a contact, b contact, NO,NC), Open collector, Voltage input

Output Alarm output (4 channels)

Output format: Open collector output (+5 V, 10 KΩ pull-up resistance)

Sampling interval 5ms-1h (5ms-50ms: voltage only number of channels is limited) , external(*1)

TIME / DIV: 1s-24h

Trigger function

Repeat action: Off- On

Trigger action: Start or stop capturing data by the trigger

Trigger source: Start/Stop: Off, Level, Alarm, External, Date, Weekly or Tim

Alarm function

Condition Setting:

Combination: OR or AND

Analog signal: Rising (High), Falling (Low), Window-in, Window-out

Logic signal: Pattern (combination of each input signal in high or low)

Pulse (number of count): Rising (High), Falling (Low), Window-in, Window-out

Pulse input function

Measurement mode: Rotation count (RPM) mode / Accumulating count mode / Instant count mode

Maximum number of pulse inputs:

Maximum input frequency: 50kHz

Maximum number of count: 50kC/sampling (16-bit counter)

PC I/F USB2.0 (Hi-speed) , Ethernet (10BASE-T / 100BASE-TX) Wireless LAN (using

B-568 optional item)

Storage Device:

Internal memory: Approx. 8GB

SD card slot:

1 (Supports SDHC, Up to approx. 32GB memory available)

*Up to 2GB per file

*Unable to use the SD card slot when using the optional wireless LAN unit

Contents: Setting conditions of the main unit, Recorded data, Screen capture

Operating environment: 0-45℃, 5-85%RH

(When operating with battery pack 0 to 40 ºC, charging battery 15 to 35 ºC)

Power source:

AC adapter AC100-240V / 50-60Hz

DC power DC8.5-24V (Max.26.4V)

Battery pack DC7.2V (2875mAh)*optional item, up to 2 packs can be installed.

Power consumption: 38VA or lower (using the AC adapter, with LCD display on, and battery pack being charged, 100V AC)

Earthquake resistant: Automotive parts Class 1A equivalent
