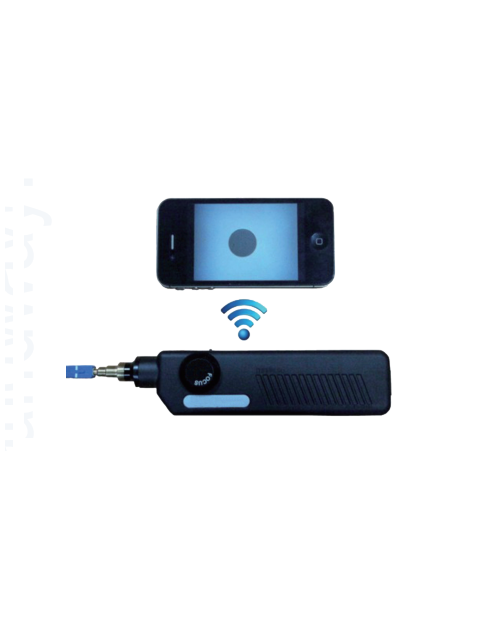

Grandwaytelecom FIM-7 Optical Fiber Microscope (260~400X)

Magnification: 260~400X

Filed of Vision: 400μm x 300μm

Focus : Manual, maximum 2mm in and out

WiFi: 2.4GHz WiFi (IEEE 802.1 1b/g/n)

Power of Charger: 110/220V@50/60Hz Charger or USB Cable with PC

Battery: 3.7V 1300mA Rechargeable Lithium Polymer Battery

Battery Running Time: about 4 hours (continuous usage)

USB Cable: mini 5-pin to USB 2.0 for Windows XP, WIN7/8

Software:

For PC: Pass/Fail Analysis to IEC 61300-3-35

For Smartphone: Android App and iOS (Apple) App

Weight: 170g

Dimension (without tip): 185mm (L) x 24mm (T)

Standard Accessories:

FIM-7, including WiFi: 1pc

AC battery charger, including USB to mini 5-pin cable: 1 pc

Tip for female SC/PC and FC/PC adapters: 1pc

Tip for female LC/PC adapter: 1pc

Software (Pass/Fail Analysis): 1pc

Manual: 1pc
