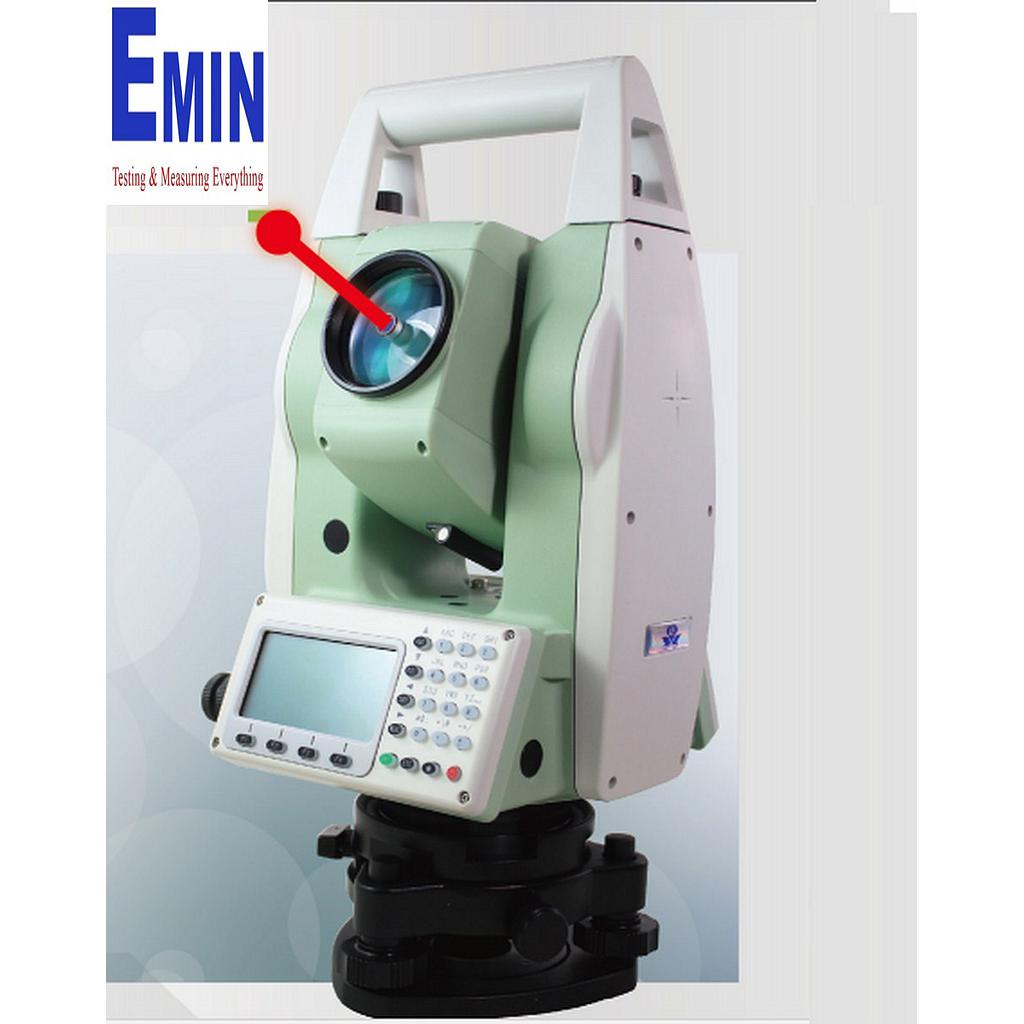

GPI GPI-600L Total Station (2")

ManufacturerGPI(View more products from this manufacturer)

ModelGPI-600L

USD 1,900.80

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Manufacturer: GPI
Model: GPI-600L
Origin: China
Warranty: 12 months

Angle Measurement
Measurement Method: Absolute encoder
Minimum Readout: 1"/5"/ 10" (0.3 mgon, 1.5mgon 3 mgon) adjustable
Accuracy: 2 "
Distance Measurement (Reflector)
Single Prism: 3000m (9,842 ft.) under good condition3
Three Prisms: 6000m (19.685ft.) under good condition3
Reflective Sheet: 800m (2,624ft.)
Accuracy: 2 mm + 2ppm
Measuring Time: (Fine Tracking): 0.8s/0.3s
Distance Measurement (Reflectorless)
Reflectorless2 Range: 0.3 - 600m (0.98 - 1968 pies)
Single Prism >7500m (24.606 ft.)
Accuracy: 3mm + 2ppm
Measuring Time: 1.5s
Telescope
Magnification: 30X
Field of View: 1° 30’
Minimum Focusing Distance: 1.2m
Image: Erect
Reticle : Illuminated
Compensator
System: Dual-axis
Working Range: ±3'
Setting Accuracy: 1"
Communication
Bluetooth
Interface: Standard RS-232, USB, mini-B
Internal Data Memory: Approx. 20,000 Points, default 8G USB pen drive
Data Format: ASCII
Operation
Operation system: Real-time Operating System
Display: High resolution backlight black and white display with contrast adjustment Graphics: 192 x 96 pixels
Keyboard: 2 sides Alphanumeric backlit crystal keyboard
Trigger key: On right instrument support
Type: Laser point, 4 brightness levels adjustment
Optical plummet ( optional)
Centering Accuracy: lmm at 1.5m instrument height
Power Supply
Battery Type: Rechargeable Li-ion battery
Voltage/ Capacity: BT10: 7.4V (DC)/3000mAh
Operating Time With BT10 Optimal 16 hours (Continuous angle and distance measurement every 30 seconds), 10 hours (typical)
Measuring Times Approx. 12000 times
Others
Water Protection: IP54 (IEC60529)
Dimensions: 1 60 x 150 x 330 mm
Weight: 5.2 kg
Operating temperature: -20°C - + 50°C
Standard accessories: Li-ion Battery x2 + Charger x1 + Strap x1 +
Transmission cable x 1 + Operating manual x1 + Clean paper x 1 + Software diskx 1

Datasheet

600M Laser distance measure in reflectorless mode: Equipped with an absolute encoding system. The users can directly proceed with the measurement after power-on of the instrument. This is very convenient for the users to operate the instrument.
Distance Measurement: New EDM board is smaller and more stable. This is helpful to the measurement stabilization and the quick repair .
Special measurement program: Equipped with the basically often-used function of measurement as well as the special measurement program. This can make the measurement for REM、 Offset measurement、MLM、Resection、Area、 Traverse and Point projection, which can meet the different requirements of the instrument.
Memory: Being able to save 20,000 positions in memory and can record the message of measurement points.
Temperature and pressure sensor ( optional ): For the changeable pressure and temperature, inbuilt temperature sensor and pressure sensor can be helpful for the measurement of high accuracy .
Transmission Interface: PC interface and USB terminal are provided. This is very helpful for the convenience of the data transmission.
Quick Repair Diagnosis System ( RS-1 ) : For the distributors who have their own repair ability, we can provide them with this quick repair diagnosis system. For example; Horizontal level / Vertical reading, instable measurement problem and so on. Through the PC interface and USB interface, the technician can directly proceed with the repair of the instrument.

Specifications

Model No.	GPI-600L
Angle Measurement
Measurement Method	Absolute encoder
Minimum Readout	1" / 5" / 10" ( 0.3mgon / 1.5mgon / 3mgon ) adjustable
Accuracy	2"
Distance Measurement ( Reflector )
Single Prism	3000m ( 9,842ft. ) under good condition3
Three Prisms	6000m ( 19,685ft. ) under good condition3
Reflective Sheet	800m ( 2,624ft. )
Accuracy	2mm + 2ppm
Measuring Time	( Fine / Tracking ) : 0.8s / 0.3s
Distance Measurement ( Reflectorless )
Reflectorless2 Range	0.3 ~ 600m ( 0.98 ~ 1968 pies )
Single Prism	>7500m ( 24,606ft. )
Accuracy	3mm + 2ppm
Measuring Time	1.5s
Telescope
Magnification	30X
Field of View	1°3'
Minimum Focusing Distance	1.2m
Image	Erect
Reticle	Illuminated
Compensator
System	Dual-axis
Working Range	± 3'
Setting Accuracy	1"
Communication
Bluetooth
Interface	Standard RS-232, USB, mini-B
Internal Data Memory	Approx. 20,000 Points, default 8G USB pen drive
Data Format	ASCII
Operation
Operation system	Real-time Operating System
Display	High resolution backlight black and white display with contrast adjustment / Graphics: 192 x 96 pixels
Keyboard	2 sides Alphanumeric backlit crystal keyboard
Trigger key	On right instrument support
Laser Plummet
Type	Laser point, 4 brightness levels adjustment / Optical plummet ( optional )
Centering Accuracy	1mm at 1.5m instrument height
Power Supply
Battery Type	Rechargeable Li-ion battery
Voltage / Capacity	BT10: 7.4V ( DC ) / 3000mAh
Operating Time With BT10	Optimal 16 hours ( Continuous angle and distance measurement every 30 seconds ) / 10 hours ( typical )
Measuring Times	Approx. 12000 times
Others
Water Protection	IP54 ( IEC60529 )
Dimensions	160 x 150 x 330 mm
Weight	5.2 kg
Operating temperature	–20℃ ~ +50℃
Standard accessories	Li-ion Battery x 2, Charger x 1, Strap x 1, Transmission cable x 1, Operating manual x 1, Clean paper x 1, Software disk x 1
