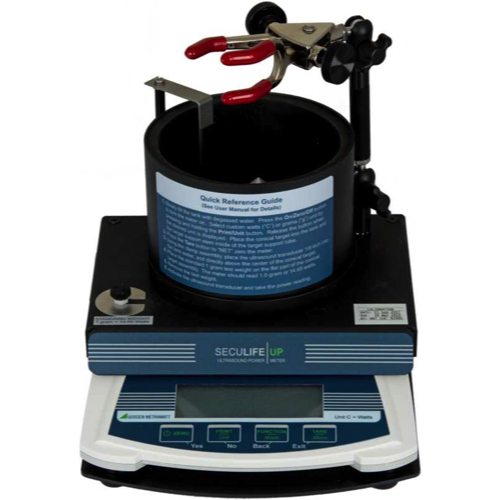

Gossen Metrawatt SECULIFE UP Digital Ultrasound Meter (0 ~ 30 W; 0.5 ~ 10 MHz)

The SECULIFE UP is used to measure and document the power of medical ultrasound transducers.

Size: 21.6 x 30.5 x 22.2 cm (H x D x W)

Carrying Case: Polyethylene

Tank Lining: 0.5 Inch (12.7 mm) thick Neoprene

Weight: 5 kg

Frontplate: Lexan / Back printed

Operating Range: 15 to 30 °C

Storage Range: -40 to 60 °C

Functions

Battery: Quantity 4, AA (IEC LR6) Alkaline

Battery Eliminator: 12 V, 500 mA, 90-264 V AC

Display: 6 digit, Backlight LCD

Power Range: 0 to 30 W

Resolution: +/- 50 mW

Minimum Detectable Power Level: 50 mW

Accuracy: +/- % + One Count Reading

Digital Filter: 2.5 seconds Integration

DUT Operating Frequency: 0.5 to 10 MHz

DUT Maximum Transducer Size: 4.00 Inches (101.6 mm)

Test Medium: Degassed Water @ 24.0 +/- 3.0 °C
