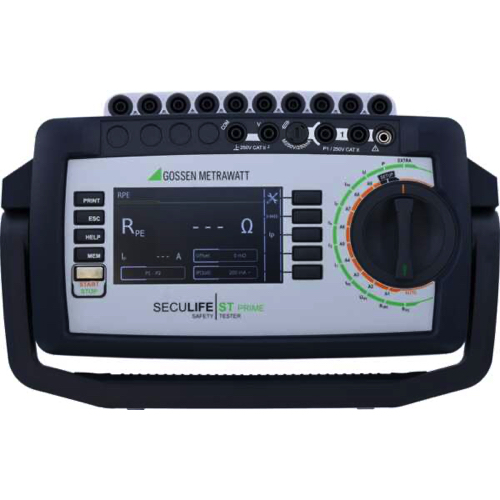

Gossen Metrawatt SECULIFE ST PRIME Electrical Safety Tester for Medical Devices (6 kV DC)

Application: Standards-compliant testing of electrical medical equipment, including production testing

High-Voltage Test: up to 6 kV DC

Protective Conductor Test: 200 mA AC/DC, 25 A AC

Display: 4.3” TFT color touchscreen

Data Memory: up to 50,000 objects

Interfaces: USB

Measurement Category: 300 V CAT II

Protection Class: Class I (EN 61140)

Measurement Functions:

Protective Conductor Resistance: Yes (200 mA / 25 A)

Insulation Resistance: Yes

Leakage Current: PE, touch, device, patient, applied part

Measurement Methods: Direct, differential, equivalent leakage

Voltage Measurement: SELV, PELV

PRCD Test: Tripping time

Functional Test: U, I, P, S, frequency

Line Test: Continuity, short circuit, polarity

Features:

High-Voltage Testing: Integrated (production use)

Test Sequences: Preconfigured & automatic

User Guidance: Automated workflow

Terminals: 10 configurable 4 mm ports for applied parts

Remote Control: Via PC (IZYTRONIQ)

Database: Expandable (DB+)

Special Feature: Antimicrobial housing
