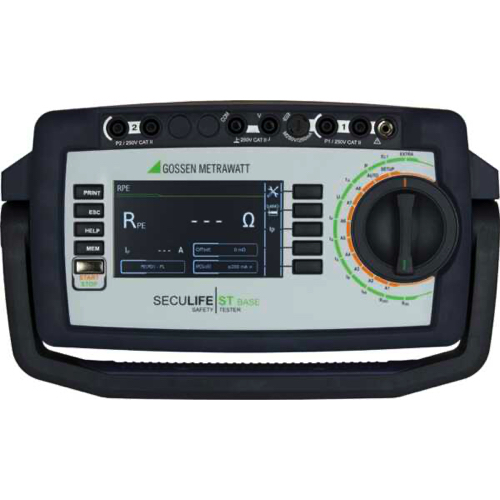

Gossen Metrawatt SECULIFE ST BASE25 Electrical Safety Tester for Medical Devices (25 A; 230 V; 2.3 kV AC / 3.3 kV DC)

Application: Testing of electrical safety for medical equipment

Test Current (max): 25 A

Nominal Voltage: 230 V

Test Voltage: 2.3 kV AC / 3.3 kV DC

Dimensions (W x H x D): 295 x 145 x 150 mm

Weight: approx. 4.0 kg

Protection Class: IP40

Standards: IEC/EN 62353, DIN VDE 0701-0702, VDE 0751

Measurement Functions:

Protective Conductor Resistance: Yes

Insulation Resistance: Yes

Leakage Current: Protective conductor, device, touch, patient

Voltage Measurement: Contact voltage, SELV, PELV

Functional Test: U, I, P, S, frequency

Power Cord Test: Continuity, short circuit, polarity check

Temperature Measurement: Pt100 / Pt1000

Features:

Test Sequences: Predefined & programmable

Data Memory: approx. 50,000 records

Display: 4.3” TFT color

Interfaces: USB, XML export

RFID: Supported

Remote Control: Yes

Software: IZYTRONIQ

Special Feature: Antimicrobial housing
