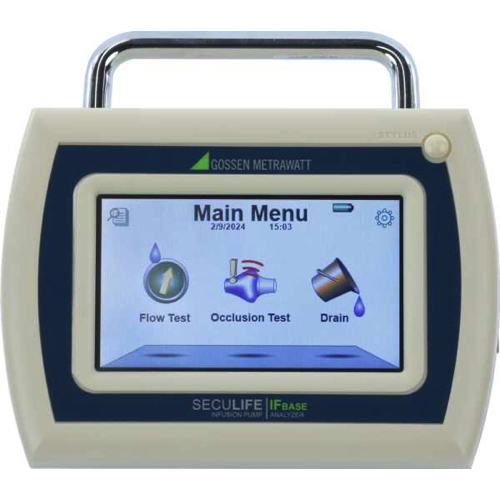

Gossen Metrawatt Seculife IF Base Infusion Pump Analyzer (0.1 ~ 1000 ml/hr)

Flow measurement

Flow rate: 0.01 ml/h … 1000 ml/h

Flow resolution: 0.01 ml/h

Volume measurement

Range: 0 to 2000 ml

Resolution: 0.001 m

Pressure measurement

Range: –5 psi … 50 psi

Resolution: 0.001 psi

Power supply

AC power: 100 … 240 VAC, 50/60 Hz

AC power adapter: 12 VDC, 1.5 A

Battery: Internal rechargeable lithium-ion battery pack

Battery runtime: 12 hours idle, 3 … 4 hours of continuous testing

Battery charging duration: approx. 4 hours (full charge)

Ambient conditions

Operating temperatures: +15 … +40 °C

Storage temperatures: 0 … +50 °C

Relative atmospheric humidity: 10% … 90%, no condensation allowed

Elevation: max. 3000 m

Electromagnetic Compatibility (EMC)

Interference emission: EN 61326-1, class A

Interference immunity: DIN EN IEC 61326-1

Mechanical Design

Housing (W × H × D): Approx. 121.9 × 109.2 × 157.5 mm

Weight: Approx. 1.4 kg

Display: 4.3” color touchscreen 480 × 270 px

Data Interfaces

Wireless interface:

Bluetooth®

Frequency range: 2.4 GHz … 2.482 GHz

Transmission intensity: max. 3 dBm

COM port: Micro-USB type B

Internal memory: 250 measurement

Datasheet
