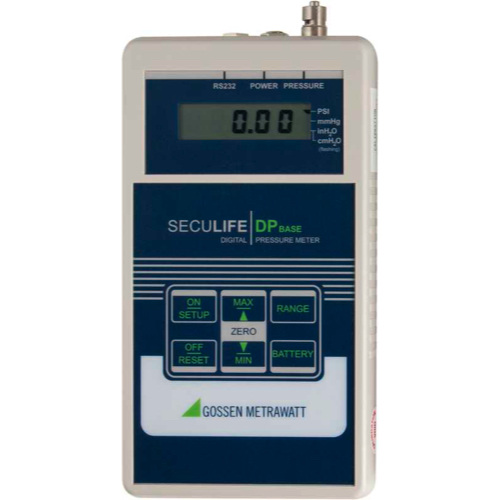

Gossen Metrawatt SECULIFE DP BASE Digital Pressure Meter (-13.50 ~ 100.00 PSI; PSI, inH2O, cmH2O, mmHg)

Pressure:

Range:

-13.50 to 100.00 PSI

-701 to 5190 mmHg @ 20°C

-374 to 2773 inH₂O @ 20°C

-951 to 7043 cmH₂O @ 20°C

Resolution:

0.01 PSI

1 mmHg @ 20°C

1 inH₂O @ 20°C

1 cmH₂O @ 20°C

Maximum overpressure: 200 PSI

Accuracy: ±0.1% FS

Digital filter: 1 – 255 samples

Compatible media: Only non-corrosive, non-ionic, or

otherwise pure fluids and/or gases that are compatible with sensor materials including glass, silicon, ceramic, epoxy, RTV, gold, aluminium and nickel.

Connections: Male Luer coupler

Device:

Display: 5-digit, 7-segment non-backlit LCD

Enclosure: ABS plastic

Overlay: Lexan, back printed

Size: 195.3 × 100.8 × 46.2 mm

Weight: 0.45 kg

Operating range: 0 – 50°C

Storage range: -40 – 60°C

Electrical:

Battery: 9 V alkaline (ANSI/NEDA 1604A or equivalent)

Battery eliminator: 9 V, 50 mA DC

Power consumption:

ON: < 15 mA

OFF: < 40 µA

RS-232 Communication:

Baud rate: 115200

Data bits: 8

Start bits: 1

Stop bits: 1

Parity: None

Handshaking: None

Connection: 1/8” stereo receptacle
