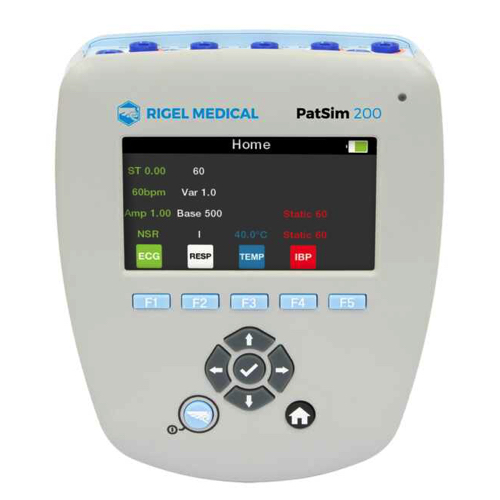

Gossen Metrawatt Rigel PatSim 200 Patient Simulator (30–300 bpm)

General ECG:

Simulation: Full 12 lead ECG with independent outputs for each signal lead

Lead I: 70%

Lead II: 100%

Lead III: 30%

Lead V1: 24%

Lead V2: 48%

Lead V3: 100%

Lead V4: 120%

Lead V5: 112%

Lead V6: 80%

ECG Normal Sinus Rhythm:

Simulation: Full 12 lead ECG with independent outputs for each signal lead

Heart Rate: 18 selectable values 30–300 bpm

Amplitude (lead II): 0.05 mV to 0.45 mV (0.05 mV steps); 0.5 mV to 5.5 mV (0.5 mV steps)

ST Segments: 18 selectable values, 8 elevated & 8 depressed

Neonatal Mode: ECG R wave width is reduced to 40 ms

Arrhythmia Waveforms (Atrial):

Amplitude (lead II): 0.05 mV to 0.45 mV (0.05 mV steps); 0.5 mV to 5.5 mV (0.5 mV steps)

Ventricular; Supraventricular; Atrial Conduction; Premature Waveforms

Performance Waveforms:

Square Waves: 2 Hz, 0.125 Hz

Triangle Wave: 2 Hz

Pulse: 60 bpm or 240 bpm

Sine Waves: 0.05, 0.5, 1, 10, 25, 30, 40, 50, 60, and 100 Hz

R-Wave Detector Test: 60 BPM haver-triangle wave with selectable width and amplitude

Haver-triangle Width: 12 selectable values between 8 and 200 ms

Performance amplitude: 0.5 to 5.0 mV in 0.5 mV steps

Pacer Waveforms:

Simulated Rhythms: Asynchronous at 75 bpm; Demand with frequent sinus beat; Demand with occasional sinus beat; A-V sequential; Non-capture; Non-function

Pulse Amplitude: 1.0, 2.0, 5.0, 10.0 mV

Accuracy: ±10%

Width: 5 selectable values 0.1–2.0 ms

Accuracy: ±5%

R Wave Detection:

Heart Rate: 6 selectable values 30–250 BPM

Amplitude: 0.05 mV to 0.50 mV (0.05 mV steps)

R wave width: 13 selectable values 8–200 ms

Respiration Simulation:

Rates: 0, 5, 10, 15, 30, 40, 60, 80, 120, 180 brpm

Resistance Variations: 0.2, 0.5, 1.0, 3.0 Ω

Base resistances: 500, 1000, 1500 and 2000 Ω

Lead selection: 1 (LA), 2 (LL) user selectable

Apnoea Simulation: Manual on/off

Temperature Simulation:

Simulation: YSI 400/700A/700B Static

Temperature unit: °C or °F, user selectable

Range: pre-set 4 values at 0.0, 24.0, 37.0, 40.0°C; pre-set 4 values at 32.0, 75.2, 98.6, 104.0°F

Invasive Blood Pressure Simulation:

Channels: 2 channels

Static Pressure: -10, -5, 0, 20, 40, 50, 60, 80, 100, 150, 160, 200, 240, 320, 400 mmHg

Respiration Simulation:

Rates: 0, 5, 10, 15, 30, 40, 60, 80, 120, 180 brpm

Resistance Variations: 0.2, 0.5, 1.0, 3.0 Ω

Base resistances: 500, 1000, 1500 and 2000 Ω

Lead selection: 1 (LA), 2 (LL) user selectable

Apnoea Simulation: Manual on/off

Temperature Simulation:

Simulation: YSI 400/700A/700B Static

Temperature unit: °C or °F, user selectable

Range: pre-set 4 values at 0.0, 24.0, 37.0, 40.0°C; pre-set 4 values at 32.0, 75.2, 98.6, 104.0°F

Invasive Blood Pressure Simulation:

Channels: 2 channels

Static Pressure: -10, -5, 0, 20, 40, 50, 60, 80, 100, 150, 160, 200, 240, 320, 400 mmHg

General Specifications

Mains power/Battery info:

3.7V 3900mAh 14.4WH Li-Ion battery

5V 1A USB micro-B power supply

100-240V~50/60Hz 0.18A max.

Weight: 0.70 Kg/1.5 lbs

Dimensions: 180 x 150 x 55 mm, 7.1 x 5.9 x 2.2 inch
