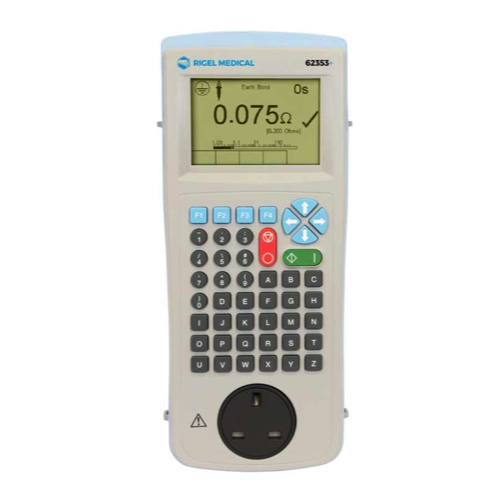

Gossen Metrawatt Rigel 62353 Plus Portable Electrical Safety Analyzer For Medical Devices (DC >200 mA; 50...500 V DC; 4 µA – 9999 µA)

Power Supply: 230VAC ±10%, 50-60Hz +/- 1Hz

Battery: 6 x 1.5V AA (batteries not included)

Dimensions (L x W x H): approx. 270 x 110 x 75 mm

Weight: 1.6 kg / 3.5 lbs including batteries

Protection Class: IP40

Standards: IEC/EN 62353, NFPA-99, AS/NZS 3551

Measurement Functions:

Earth Bond Resistance: >200 mA DC test current

Insulation Resistance: 50 / 100 / 250 / 500 V DC

Leakage Current: 4 µA – 9999 µA

Voltage Measurement: up to 300 V AC

Measurement Capability: Battery-powered insulation & earth bond testing

Features:

Test Modes: Automatic, semi-automatic, manual

Test Sequences: Fully customizable

Data Storage: Internal memory with onboard data logging

Data Management: PC communication & download

Operation: No mains required for many tests → full portability

Verification: Automatic secondary check for correct results
