Voltage measurement: 0 ... 1000 V DC
Current measurement (direct): 0 ... 20 A DC
Insulation resistance measurement: measuring range: 0 ... 20 MΩ, test voltages: 250, 500, 1000 V DC
Earth fault measurement: 0 ... 1000 V DC
Testing for protective conductor continuity: 0 ... 10 Ω / > 200 mA
Display: LCD Multiple display with background illumination; Dot matrix: 128 x 64 pixels
Data Interface: USB 2.0 (USB 2.0 full speed (12 Mbps) compatible)
Protection: Housing: IP 42 per DIN VDE 0470 part 1/EN 60529
Dimensions: 209 x 98 x 35 mm
Weight: approx. 500 g with batteries
Description

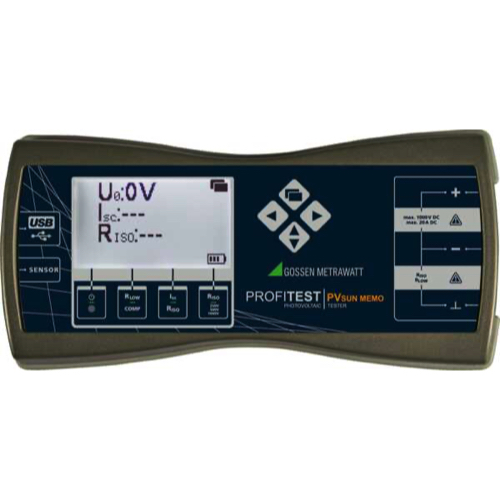

Test instrument for testing PV modules and strings with up to 1.000 V / 20 A per DIN EN 62446.
Insulation measurement with up to 1.000 V test voltage, polarity test, ground fault test and protective conductor continuity test.
With measurement cables and adapters in test case.
Internal memory, bidirectional interface, software and USB interface cable
