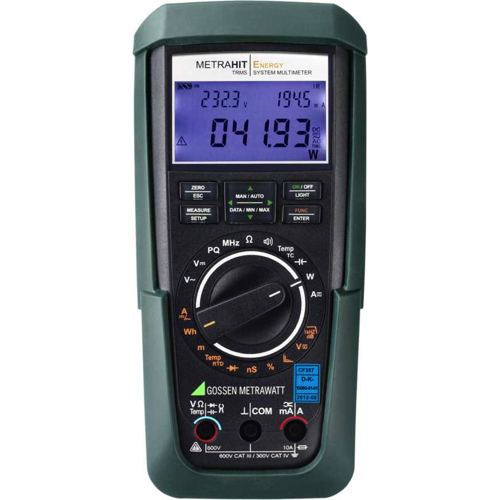

Gossen Metrawatt METRAHIT ENERGY DC-Power Set TRMS Power Multimeter And Power Quality Analyzer (60,000 counts; 100 kHz)

Display: Triple display, 60,000 counts, backlight

Measurement Functions: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, continuity, diode, temperature

True RMS: AC & AC+DC, bandwidth up to 100 kHz

Voltage Range: 0 … 1000 V AC / DC

Current Range (direct): 10 nA … 10 A (16 A max, short duration)

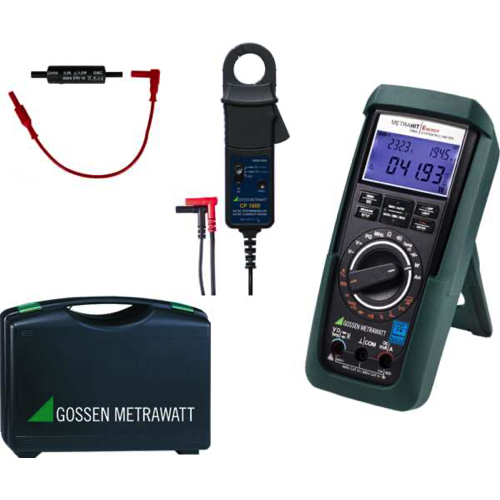

Extended DC Current Measurement: up to 1250 A DC (via external shunt & sensors, included in set)

Power Measurement: Active power (W), reactive power (VAR), apparent power (VA), power factor (PF)

Energy Measurement: Wh, VARh, VAh

Power Quality Analysis: Overvoltage, undervoltage, dips, swells, transients

Harmonic Analysis: Up to 15th harmonic (16.7 / 50 / 60 / 400 Hz)

Resistance Range: 0 … 60 MΩ

Capacitance Range: up to 1 mF

Frequency Range: up to 1 MHz

Data Logger: Internal memory, up to 300,000 readings

Interfaces: Infrared (IR), PC software remote control

Special Features: Low-pass filter 1 kHz, crest factor, cable length measurement, DC shunt measurement

Safety Rating: CAT IV 600 V / CAT III 1000 V

Protection Class: IP52

Operating Temperature: –10 … +50 °C

Power Supply: 2 × AA 1.5 V batteries

Dimensions (W × H × D): 200 × 87 × 45 mm

Weight (incl. battery): approx. 350 g
