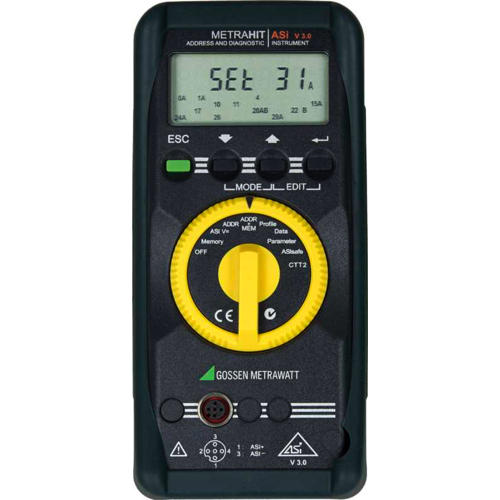

Gossen Metrawatt METRAHIT Asi v3.0 AS Interface Addressing Device (2 ~ 35 V; 0 ~ 150 mA)

Addressing Range:

Slave address selection & setting: 0–31, 1A–31A, 1B–31B

Voltage Measurement Range (DC): 2 … 35 V

Current Measurement Range (DC): 0 … 150 mA

Voltage Accuracy: ±(3.5% + 2 digits)

Current Accuracy: ±(5% + 2 digits)

Key Measurement & Diagnostic Functions:

Voltage measurement on AS-i line

Operating current measurement of AS-i slaves

Test of digital & analog I/O data

Slave parameter setting & echo read-back

Slave profile readout (IO, ID, ID2)

ID1 code read & write

Diagnostics for CTT2 slaves

ASIsafe diagnostics for safety-related slaves

Storage of complete network configurations

Display / Interface: Handheld portable tester

Power Supply: 4 × AA batteries (LR6, 1.5 V)

Dimensions (W × H × D): 84 × 195 × 35 mm

Weight: approx. 200 g
