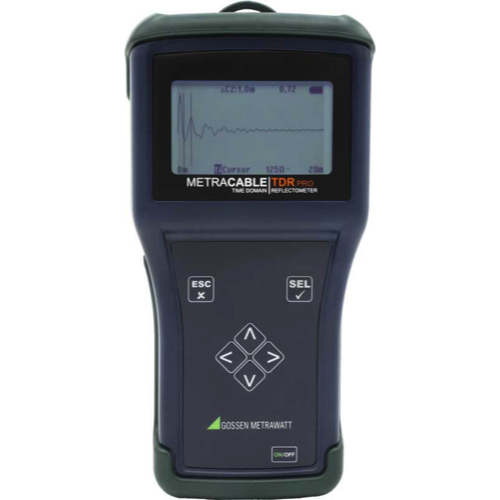

Gossen Metrawatt METRACABLE TDR PRO Time Domain Reflectometer

Weight: Approx. 390 g (without batteries)

Protection: IP 52

Display: LCD, monochrome, luminous, 240 x 128 pixels, adjustable on-time and contrast for background illumination

Connections: 2 ea. 4mm banana plug safety sockets

Power Supply: 4 ea. LR6 battery, 1.5 V, type AA or 4 ea. rechargeable NiMH, 1.2 V, type AA

Interface:

Bluetooth®

Frequency range:

2.402 GHz … 2.480 GHz

Transmission intensity: Class 2, +1.5

dBm BDR, –1 dBm EDR, +0,5 dBm LE

Internal Memory:

Up to 32 entries in the cable database

Up to 510 measurements in the instrument

Menu language: German, English, French

Signal type: Symmetrical search signal

Range: ≤14 km

Accuracy: +1% ± pixels at 0.66 VF

Resolution: 3.125 ns or 0.3 m depending on cable

Output pulse: Max. 20 V pp

Pulse lengths: 12, 25, 50, 100, 200, 500, 1000 and 2500 ns

Velocity factor: Variable from 0.2 to 0.99

in steps of 0.01

Impedance: 50, 75, 100, 125 Ω

Signal type: Symmetrical

Magnification factor: In steps of 6 dB
