Connections:
RJ-45 socket
Adapter: RJ-45 to coaxial cable, RJ-11 to banana plug, including crocodile clips for banana plug
Cable Test (Ethernet cable, coaxial cable, telecommunications cable):
Detection of reversed connections, short circuits, interruptions, split pairs (as of 2 m), testing of the data line assignment with pin and pair assignment (wire mapping)
Clear graphical display for fast error identification
TDR function: Measurement of individual wire lengths from 2 m to 200 m
Cable database: 15 wiring versions predefined for cable test and creation of own definitions possible as of 2 wires, including Profinet;
16 cable types predefined with VF for TDR length measurement and creation of own cable types possible
Check for external voltage before test start
Network Tests (Ethernet cable):
IP test
• Connection to the network via DHCP or with static IP (own IP and MAC address configurable)
• List of active network subscribers with name, IP and MAC address
• Detection of network speed 10/100/1000 Mbit
Ping test
• Targeted ping of individual addresses and simultaneous ping stress test
• Ping frame sizes adjustable from 32-1024 bytes
• Display of ping results (received/lost) and response times (min./max./average)
Power over Ethernet Test (Ethernet cable):
Activation of PoE/PoE+/PoE++/LTPoE functions
Measurement of the voltage in V and determination of the power (up to 90 W) according to IEEE802.3af/at/bt
Port Finder Function (Ethernet cable):
Link blink function for identifying ports on routers/switches/hubs:
Transmission of an NLP signal that switches the link LED associated with the port on and off in the same cycle on the most common hubs, switches,
or routers.
Tone Mode (Ethernet cable):
Emission of a search tone signal; using the probe search signal receiver, the associated network port can be clearly identified on the patch panel, etc.
4 search frequencies available for selection: 1000 Hz; 880/1000 Hz; 2600 Hz, and 2600/1900 Hz
Compatible probes: P310 (D130B), P410 (D140B)
Branch Detection (coaxial cable, telecommunications cable) optional function:
Software option for precise localization of branches / stub lines (bridge taps) in telecommunications networks in buildings. Determines existence of and distance to the branch / stub line.
Can be purchased as an option; see ordering information.
Additional Functions:
• Memory function for 14,000 entries
• Self-test
External Voltage Protection: 60 V DC
Display: Illuminated display, adjustable time for display backlighting
Power Supply: 4× 1.5 V (AA, LR6, alkaline/mignon) batteries
Dimensions: 195 × 100 mm
Weight: 380 g (without batteries)
Menu Languages: German, English
Datasheet

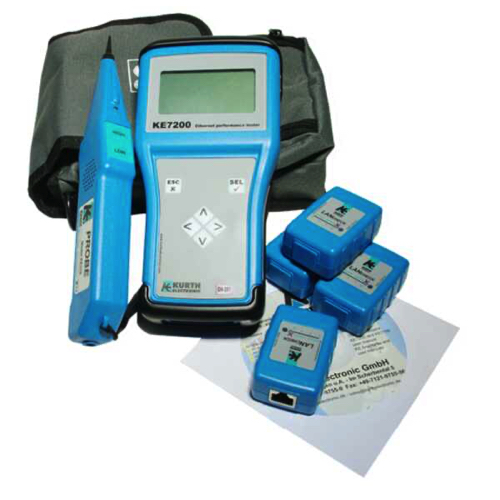

KE7200* network tester with 4 KE7010 remote units and P310** probe
2× short RJ-45 test cords, 1× long RJ-45 test cord, 1× RJ-11 test cord to banana plug, including plug-on crocodile clips, 1× RJ-45 coax. adapter set (2× RJ-45 plug adapters to BNC, 2× BNC plug adapters to F-female), carrying pouch includes KE7200 Manager PC software (download from website
