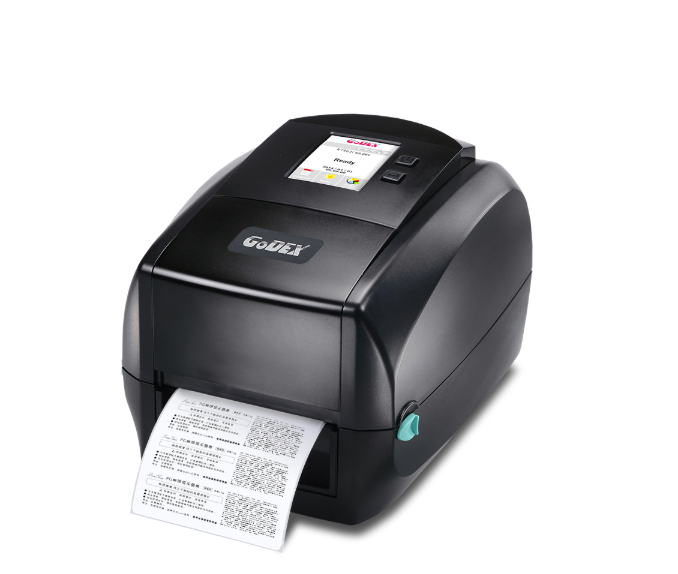

Godex RT863i Desktop Printer (Direct Thermal, 3 IPS, 4.16 ")

Print Method: Thermal Transfer / Direct Thermal

Resolution: 600 dpi (23.6 dots / mm)

Print Speed: 3 IPS (76.2 mm / s)

Print Width: 4.16"(105.6 mm)

Print Length: Min. 0.16" (4 mm); Max. 15" (381 mm)

Processor: 32-bit RISC CPU

Memory: Flash: 128 MB Flash (60 MB for user storage), SDRAM: 32 MB

Interfaces: • USB 2.0 (B-Type) • Serial port: RS-232 (DB-9) • IEEE 802.3 10/100 Base-Tx • Ethernet port (RJ-45) • USB Host (A-Type)

Ribbon: Length: 981'(300 m), Width: 1.18" Min-4.33" (30 mm-110 mm) Max, Core diameter: 1"(25.4 mm)

Control Panel: • Color TFT LCD with navigation button • Power on / standby button with green color LED backlight • Calibration button at rear panel • Control key: FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red)
