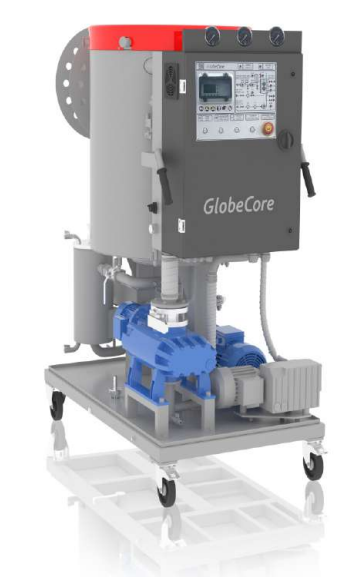

GlobeCore UVM-4LT Transformer oil purification unit (Vacuum drying and filtration mode: 4.0 gal/h, degassing mode: 3.0 – 4.0 gal/h)

Productivity:

+ in the thermal vacuum drying and filtration mode, m3/h (gal/hour): 4.0 (1056)

+ in the degassing mode, m3/h (gal/hour): 3.0 – 4.0 (792-1056)

Parameters of oil after processing in several passes:

+ total gas content, %, max: 0.1

+ moisture mass content in oil, g/t (ppm), max: 10

+ ISO 4406 cleanliness: -/14/12

Max output oil temperature, ºС (ºF): 55 (131)

Output pressure, bar (Psi): 3 (43.5)

Oil heater power consumption, kW: 36

Power consumption, kW, max: 46

The power supply parameters: Any options on customer's request

Overall dimensions, max, mm (in):

+ length: 1435 (56)

+ width : 830 (33)

+ height: 1500 (59)

Weight, kg (pound): 700 (1540)
