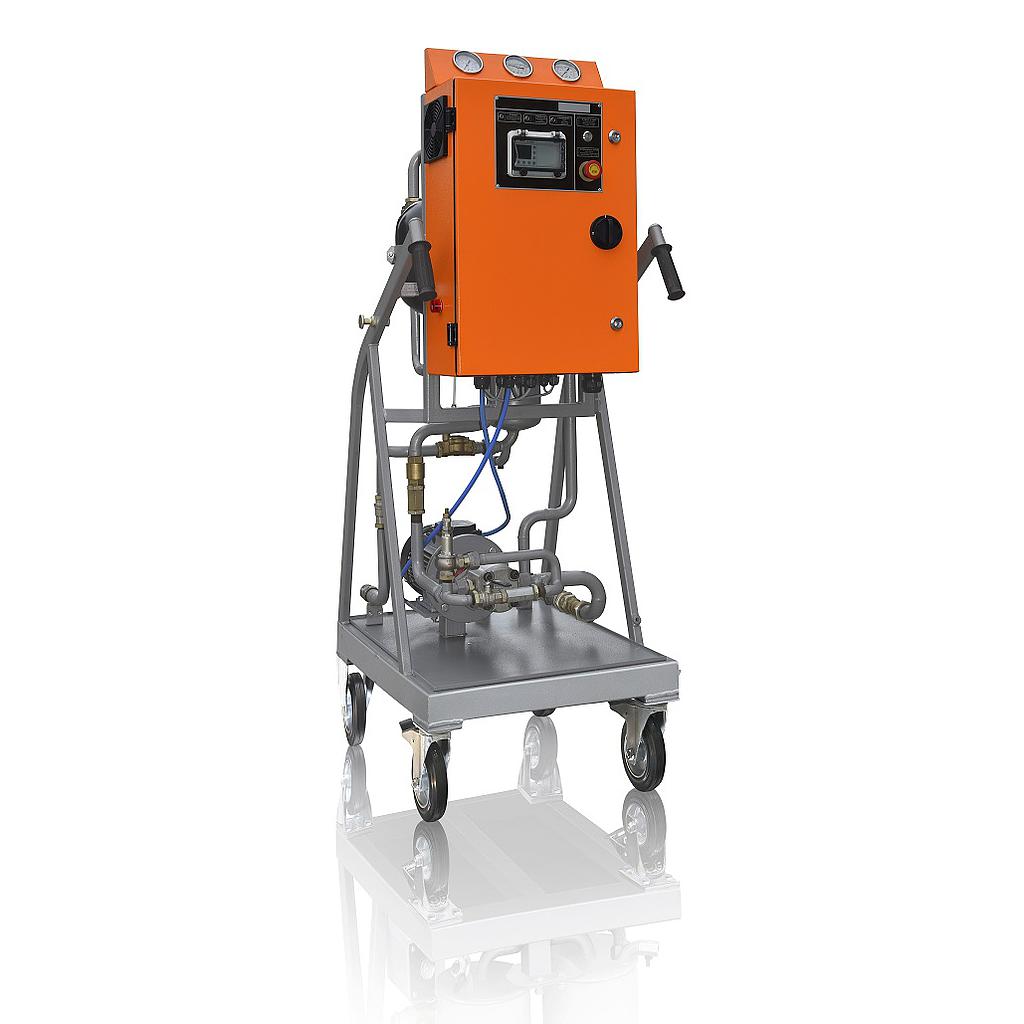

GlobeCore CMM-1,2Fr Industrial oils filtration unit with self-cleaning filters (0.5 … 1.2 m3/h; 5μm)

Processing rate, m3/h: 0.5 … 1.2

Filtration fineness, μm: 5

Hydraulic accumulator output volume, l: 4

Oil pressure in the accumulator, bar, max: 12

Processed oil temperature, °C: 0…70

Power consumption, kW: 1.5

Nominal oil pressure at the inlet, bar, max: 0.3

Oil pressure at the transfer pump outlet, bar, max: 12

Three phase 50Hz (60 Hz) AC power supply voltage, V: s determined by customer

Dimensions, mm, max

• length: 800

• width: 620

• height: 1500

Weight, kg, max: 130

The CMM-1,2Fr unit is designed to clean oil-based liquids (oils, cutting fluids, working fluids for hydraulic systems of machines and equipment) from mechanical impurities. The unit ensures the purity of liquids in the production, repair and maintenance of equipment of power enterprises, construction and road equipment, engines, machine tools, process equipment, etc. The unit increases the reliability and durability of hydraulic oil systems and assemblies.

The CMM-1,2Fr unit is able to process mineral oils of the following properties:

• kinematic viscosity, mm2/s at 50°C, max – 400;

• ISO6 4406 purity class, min – 21/19/16.

Advantages

• there is no need to change self-cleaning filter elements;

• the equipment is able to function non-stop due to the installed filter elements;

• compact dimensions;

• the unit is made on high mobility wheels-mounted platform.
