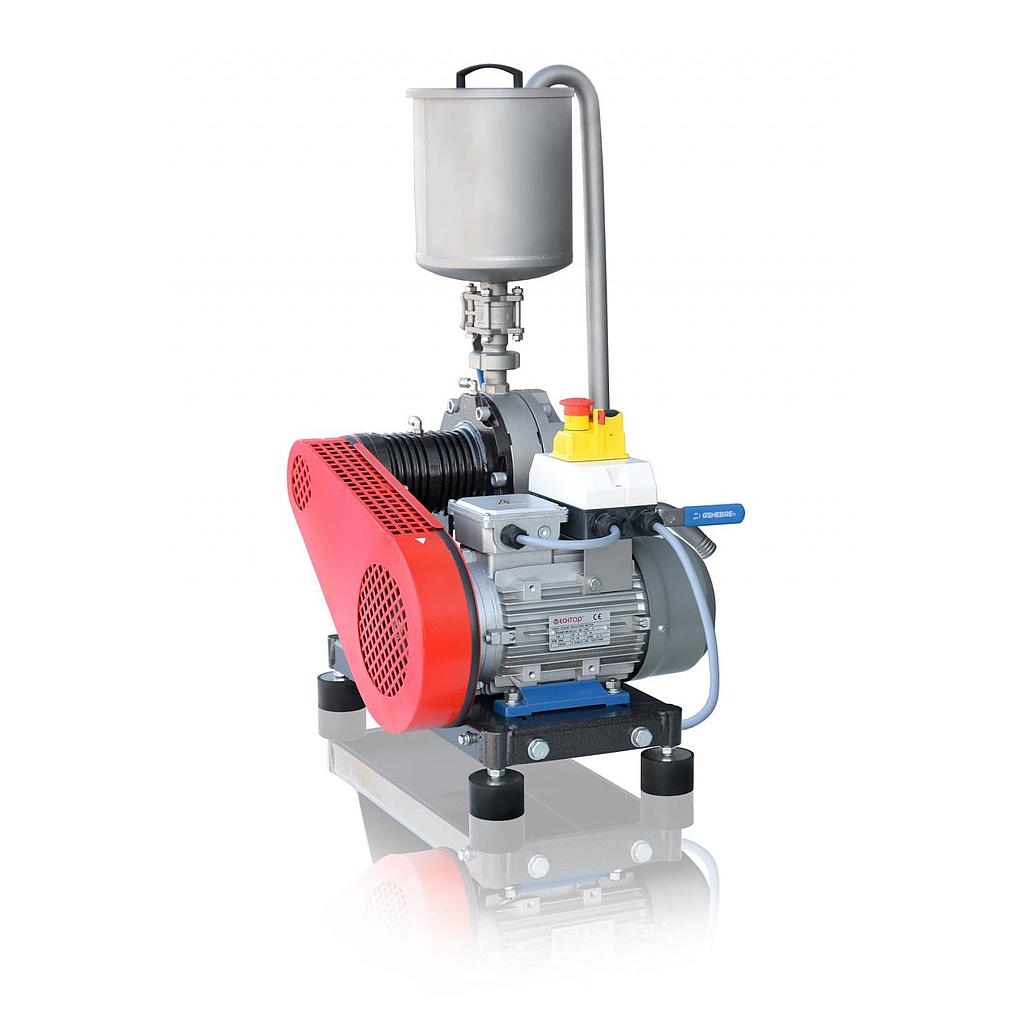

GlobeCore CLM-100.2 Colloid mill (1 m3/h; 3.3 kW)

Unit capacity, m3/h (gpm): 0.1…1 (0.44… 4.4)

Kinematic viscosity of product, mm2/s (St), not more than: 150 (1.5)

Operating temperature, °С (°F), not more than: 180 (356)

Maximum pressure, bar (psi), not more than: 6 (87)

Product operating volume, L (gal): 5 (1.3)

Shaft seal type: mechanical

Rotor/stator tooling type: nozzle

Replaceable knife kit: optional

Knife axial gap (preset), mm (in): 0.2…2 (8·10-3… 8·10-2)

Knife radial gap, mm (in): 0.25 (10-3)

Knife tip speed, m/s (mph), not more than: 50 (112)

Mill shaft and bearing rotation speed, rpm: 6,800

Electric motor shaft rotation speed, rpm: 3,400

Drive power, kW: 3.3

Power voltage, V: custom

Dimensions, mm (in), not more than:

· length: 550 (22)

· width: 600 (24)

· height: 850 (34)

Weight, not more than, kg (lb): 75 (165)
