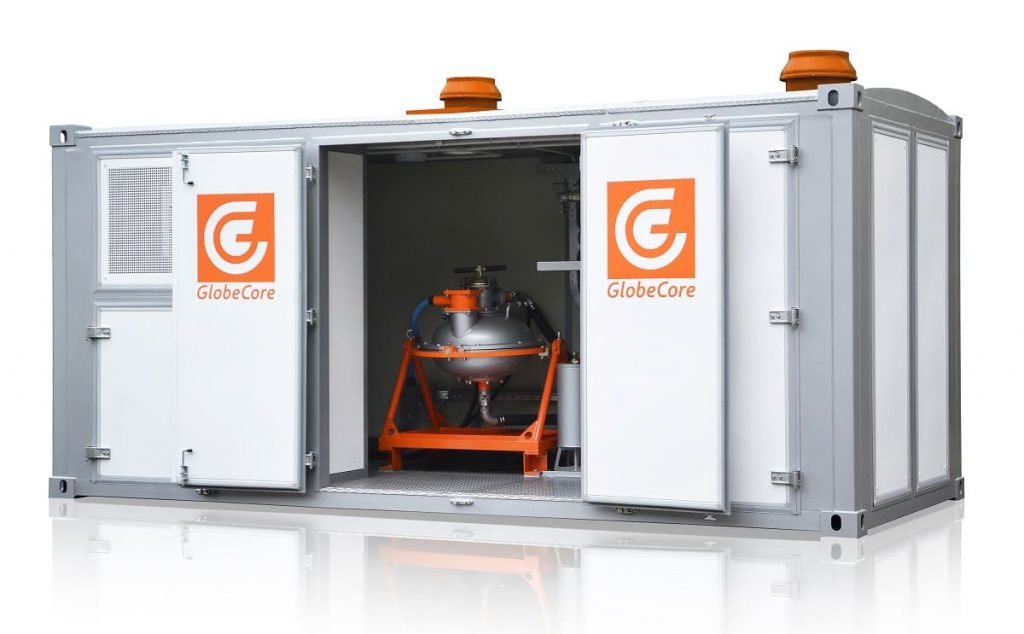

GlobeCore AVSk-150 Wastewater Treatment Complex (18 m3/h; 9.5 kW)

Wastewater purification capacity for heavy metals removal, m³/hour (gpm) (max): 18 (80)

Process chamber length, mm (in): 156 (6)

Magnetic induction in the center of the bore, Т: 0,12

Max flow velocity, m/sec (in/sec): 0,2 (8)

Max pressure in the process chamber, MPa (psi): 0,16 (23)

Dynamic viscosity of the material, Pa·sec (lbf·s/ft²): 1 (0,02)

Max product temperature, ºС (ºF): 70 (158)

Power source parameters: Custom

Active power, kW: 9,5

Total max power, kVA: 22

Capacitor, kVAr: 40+25+25

Max dimensions, mm (in):

Container:

– length: 4800 (189)

– width: 2100 (83)

– height: 2500 (98)

AVS unit:

– length: 1060 (42)

– width: 910 (36)

– height: 1250 (49)

AVS control section:

– length: 1050 (41)

– width: 800 (31)

– height: 1960 (77)

Weight, kg (lb), max:

Container (with the unit and purification system included): 5000 (11000)

Process section: 380 (830)

Control section: 300 (660)
